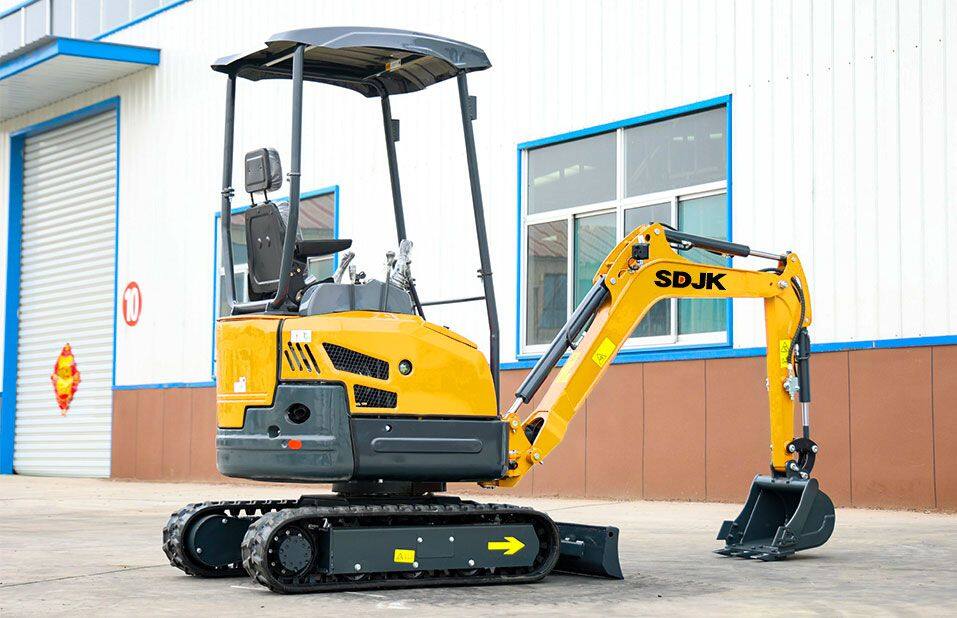

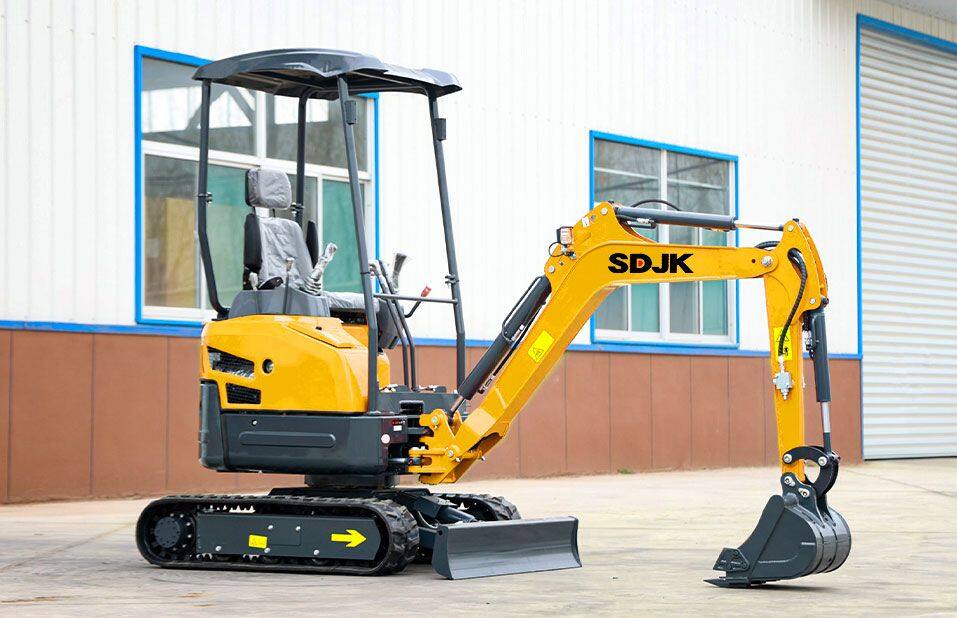

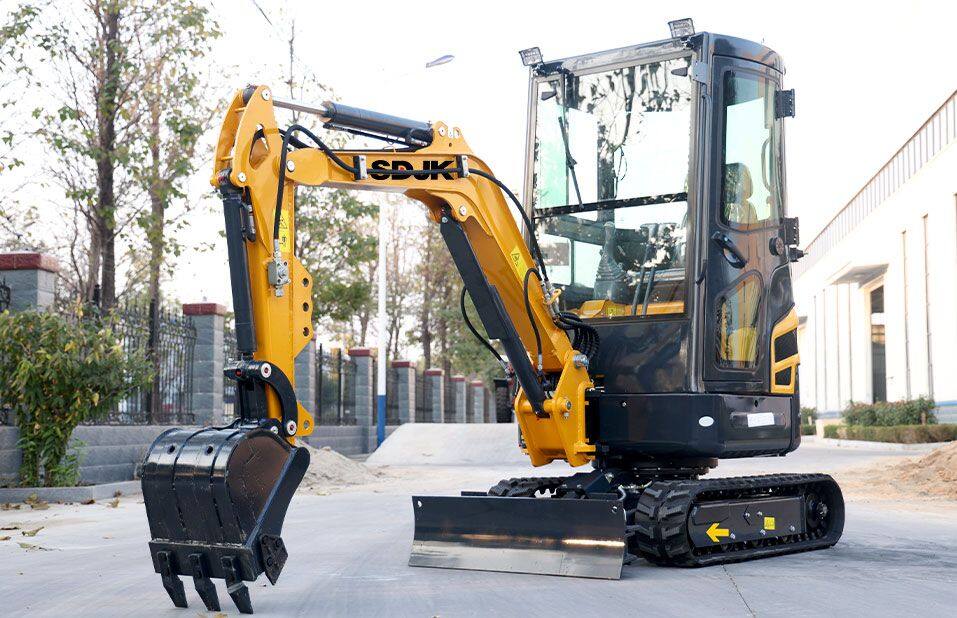

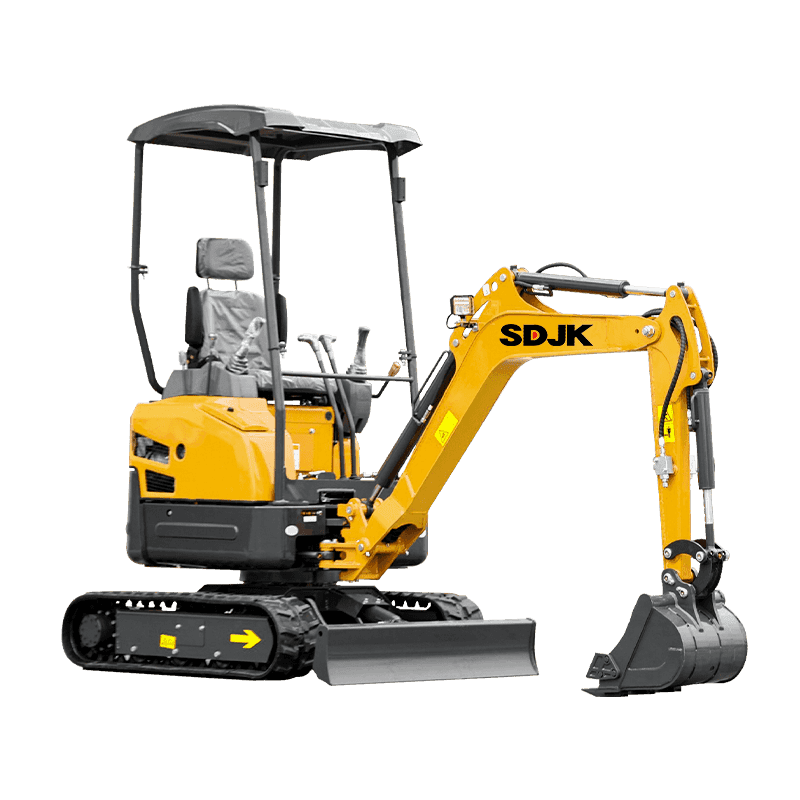

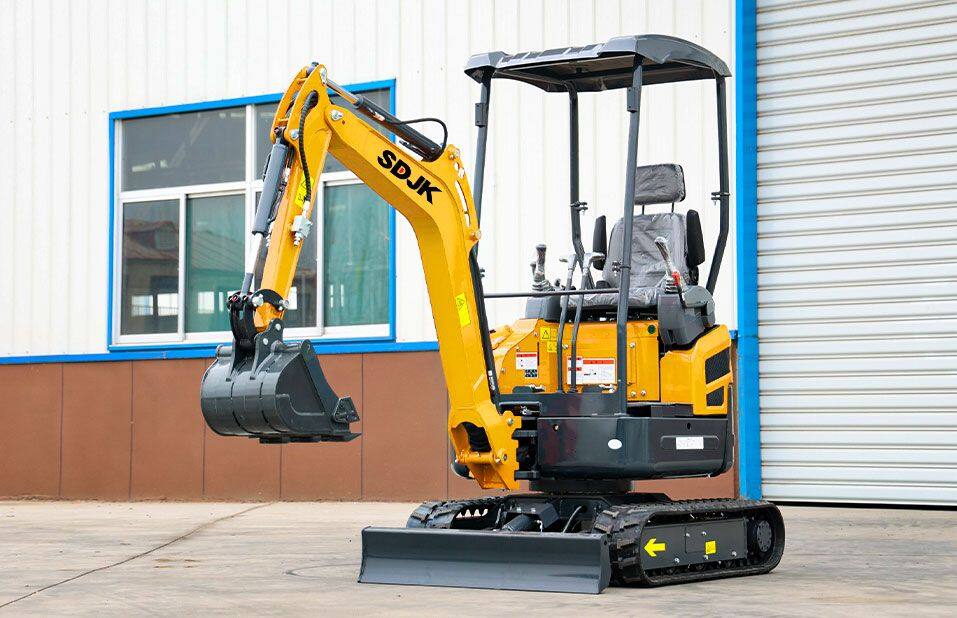

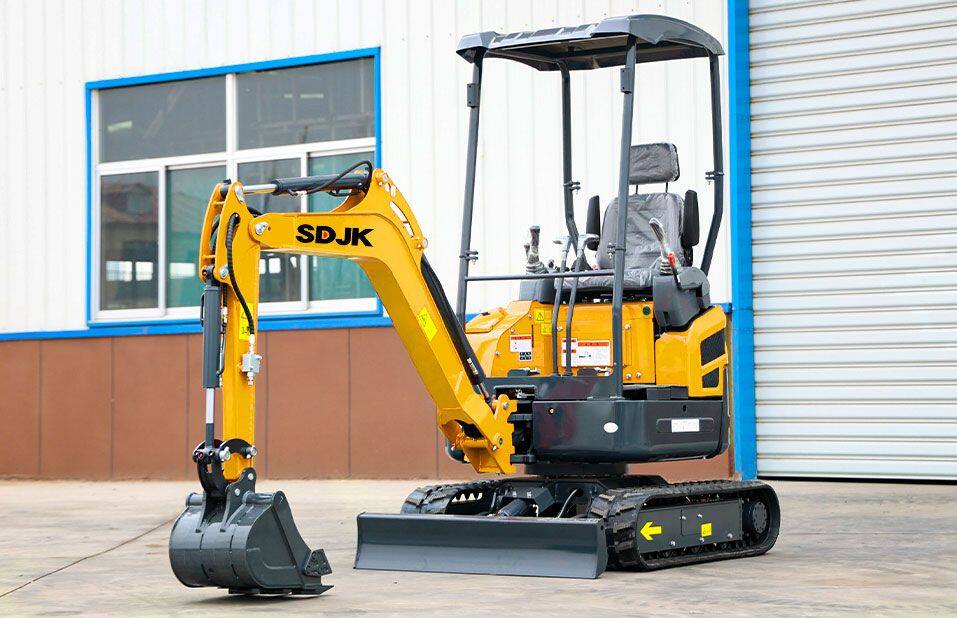

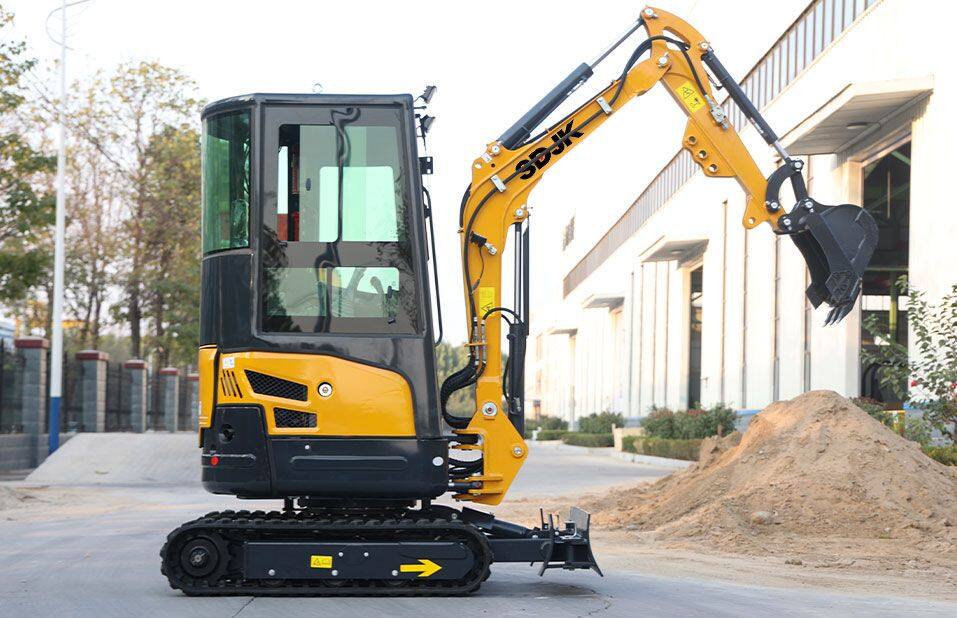

JKW-18S

Are you looking for a 1.8-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-18S crawler excavator is the ideal choice. Powered by a Kubota engine, the JKW-18S delivers 10.2 kW of power at 2,200 rpm and has an operating weight of 1.8 tons.

Operating weight1800kg

Power10.2kw

Features

This machine will become your best friend

High-Performance Engine

Roof And Chassis

Hydraulic System

Comfortable-Environment

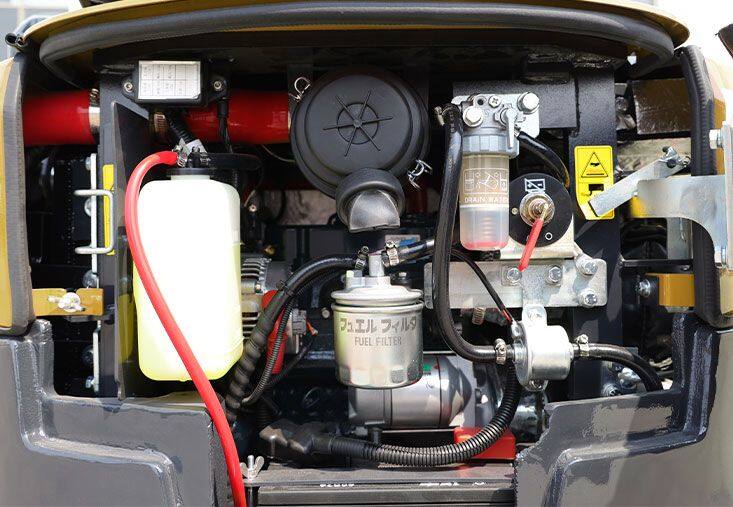

Engine

Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from

About Parameters

JKW-18S Specifications
Overall dimensions	325011502325mm
Machine weight	1450mm
Bucket capacity	0.04m³
Engine model	D722-E4B-CBH-2
Displacement	0.719L
Power output	10.2kw/2500rpm
Slew speed	10r/min
Travel speed	2km/h
Swing angle	56/55°
Gradeability	58 (30)%(°)
Average ground pressure	26KPa
Bucket digging force	10.8kn
Fuel tank capacity	18L
Maximum digging height	2930mm
Maximum dumping height	1990mm
Maximum digging depth	2200mm
Maximum vertical digging depth	1900mm
Maximum digging radius	3630mm
Maximum ground-level digging radius	3600mm
Minimum front swing radius	1650mm
Swing center to track end	785mm
Dozer blade width	1150mm
Dozer blade height	230mm
Maximum dozing height	165mm
Maximum dozing depth	260mm
Dozer blade to track end	1660mm

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability.

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG?

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-16 Mini Excavator

Power : 19kw
Operating Weight : 1600kg
Max. digging depth : 1780mm

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm
