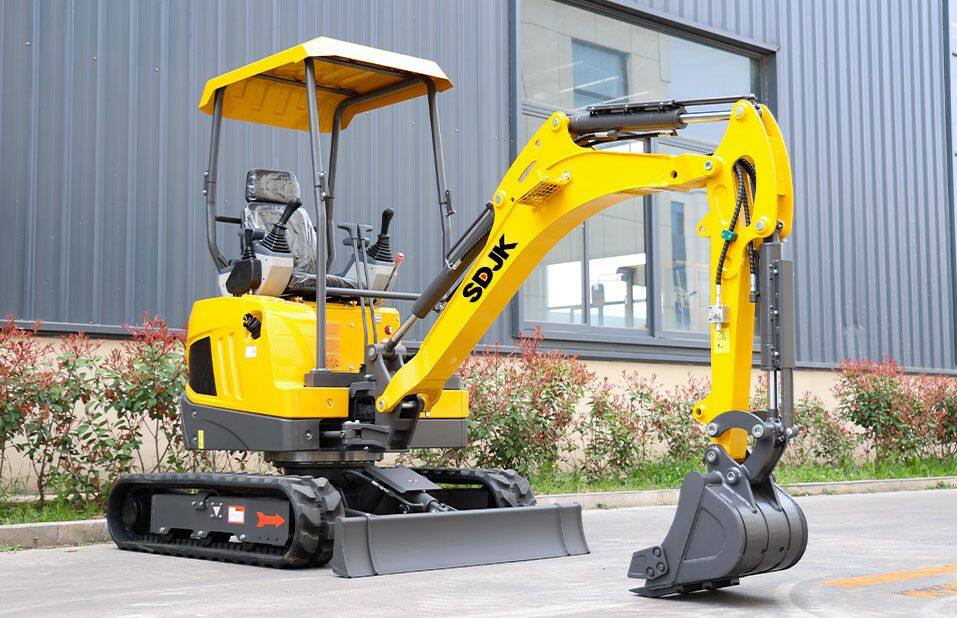

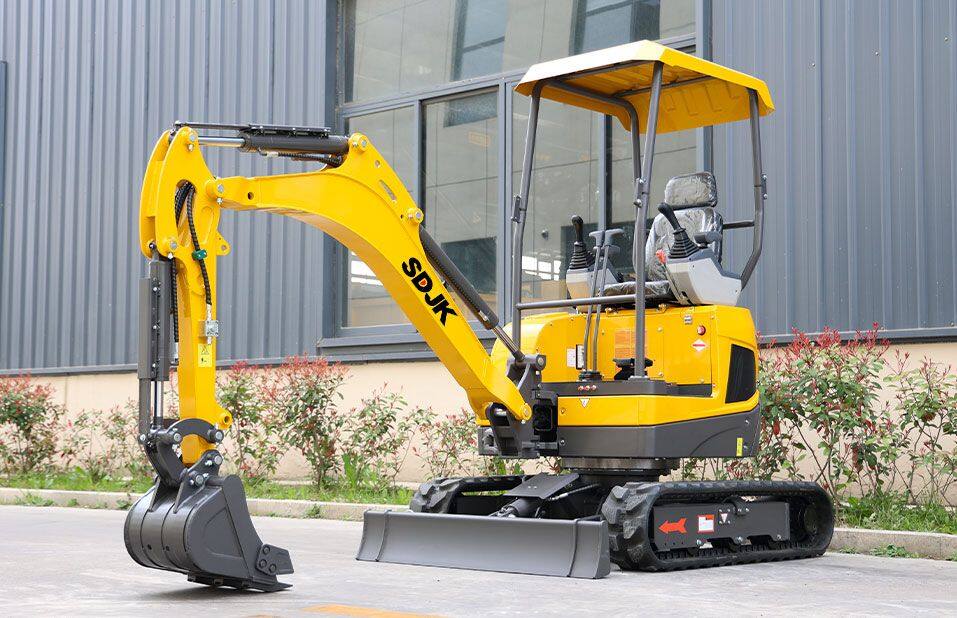

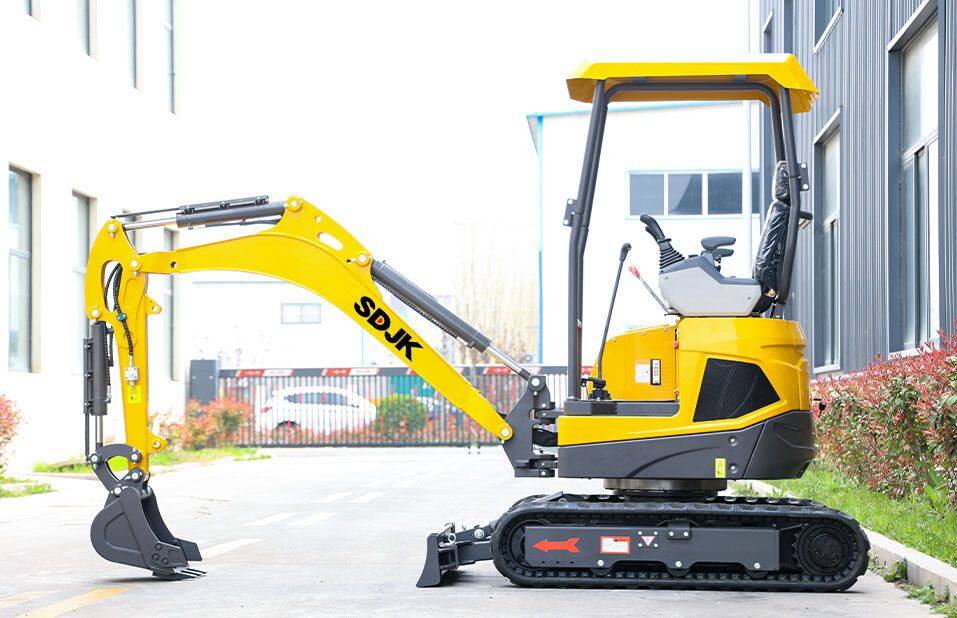

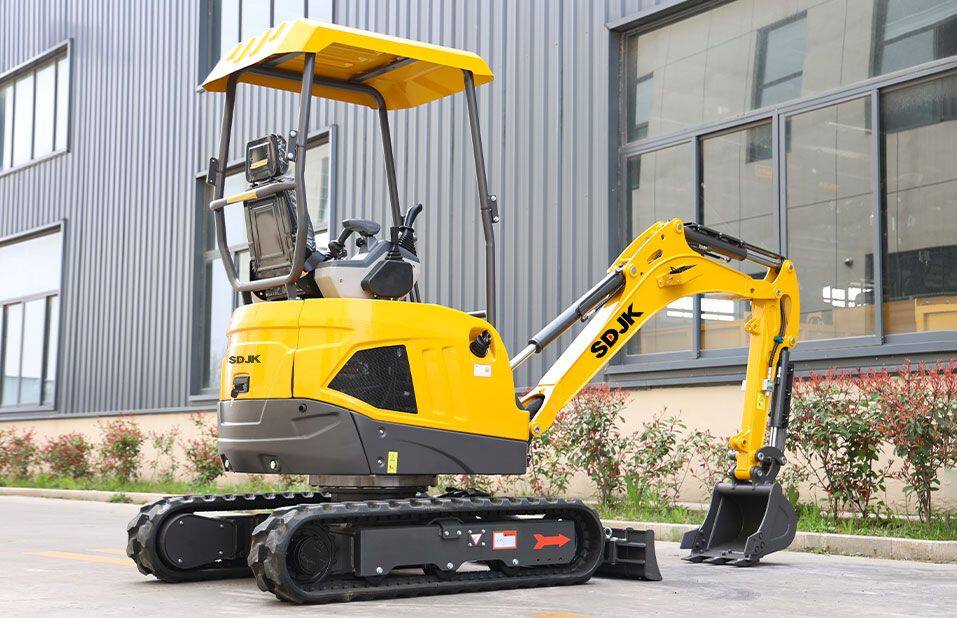

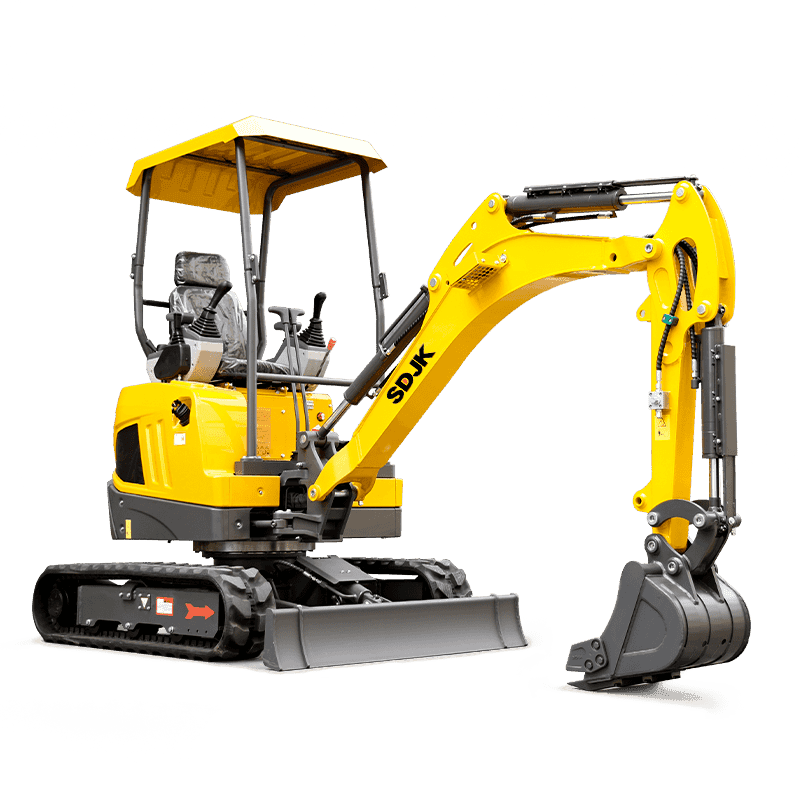

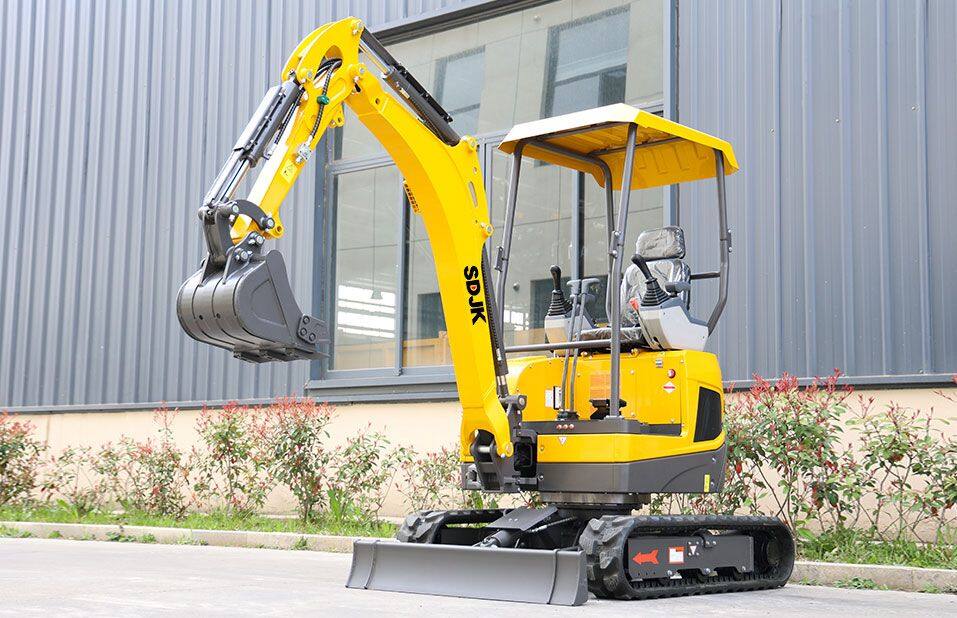

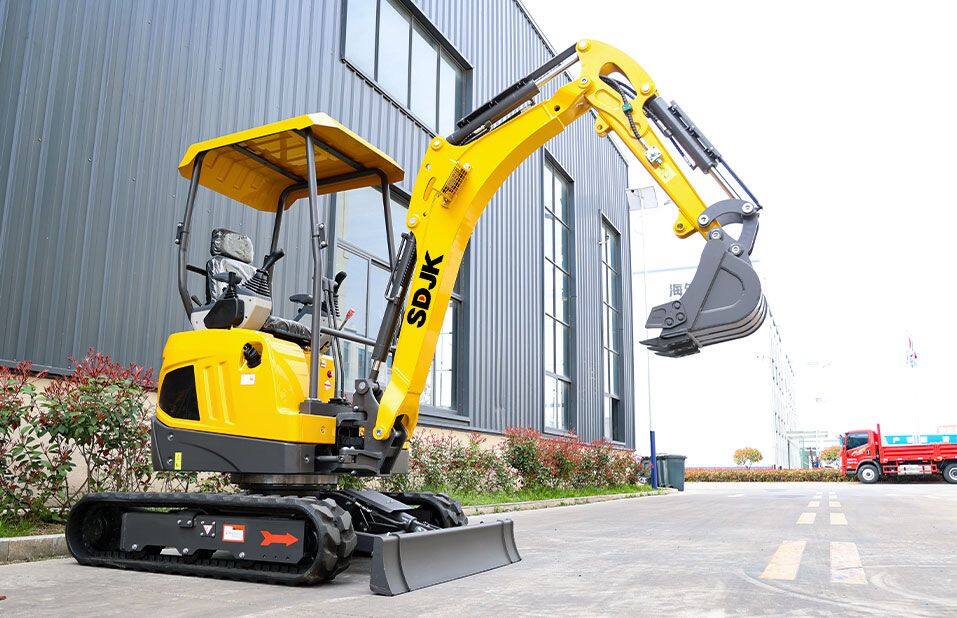

JKW-20

Are you looking for a 2-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-20 crawler excavator is the ideal choice. Powered by a LAIDONG engine delivering 18.1 kW at 2,600 rpm, the JKW-20 has an operating weight of 2 tons.

Operating Weight2000kg

Power11.8kw

Features

This machine will become your best friend

Engine

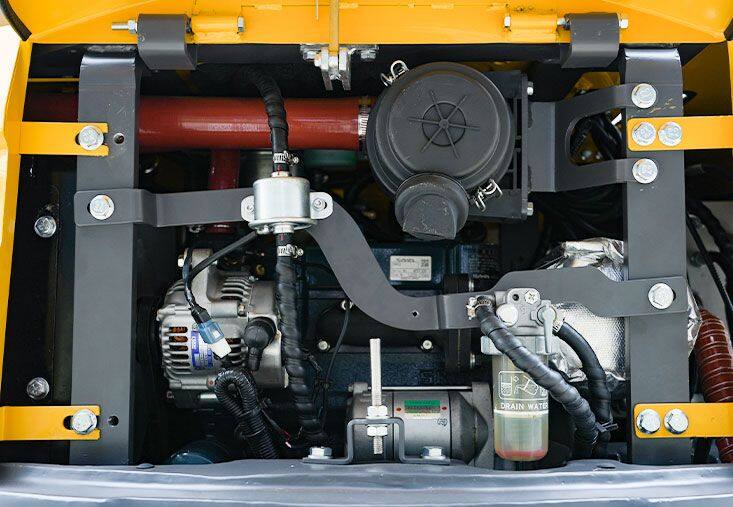

High-Performance Engine

Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from

Roof And Chassis, Strong And Durable

Roof And Chassis

SDJK series crawler excavators are equipped with a telescopic undercarriage system. Its durable undercarriage design helps protect all telescopic components from wear so that they can better cope with various harsh environments and complete the work better.

Hydraulic System

The undercarriage features a high-density, highly wear-resistant engineering track system that ensures greater stability during operation. It offers high load-bearing capacity and strong traction without damaging asphalt surfaces, while also delivering excellent climbing performance suitable for a wide range of complex terrains.

Comfortable Environment

Comfortable-Environment

The operator environment is crucial when delivering performance and safety, and the seat position is ergonomic, providing excellent visibility in tight spaces while maintaining maximum stability.

About Parameters

JKW-20 Specifications
Overall Dimension	357513002288mm
Operating Weight	2000KG
Bucket Capacity	0.03m³
Width of Platform	1015mm
Length of Crawler	1550mm
Minimum Tail Swing Radius	650mm
Width of Crawler	230mm
Engine Model	Kubota D902/LAIDONG KM385B
Rated Net Power	11.8kw/18.1kw/2600rpm
Maximum Torque	51.3N.m
Travel Speed	4/2 km/h
Swing Speed	8r/min
Gradeability	≤30°
Ground Pressure	30KPa
Fuel Tank Capacity	18L
Hydraulic Tank Capacity	20L
Engine Oil Capacity	3.7L
Maximum digging height	3485mm
Maximum dumping height	2440mm
Maximum digging depth	2290mm
Maximum vertical wall digging depth	1750mm
Maximum digging radius	3790mm
Minimum swing radius	1395mm

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability..

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm

JKW-18S Mini Excavator

Power : 10.2kw
Operating Weight : 1800kg
Max. digging depth : 2200mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm

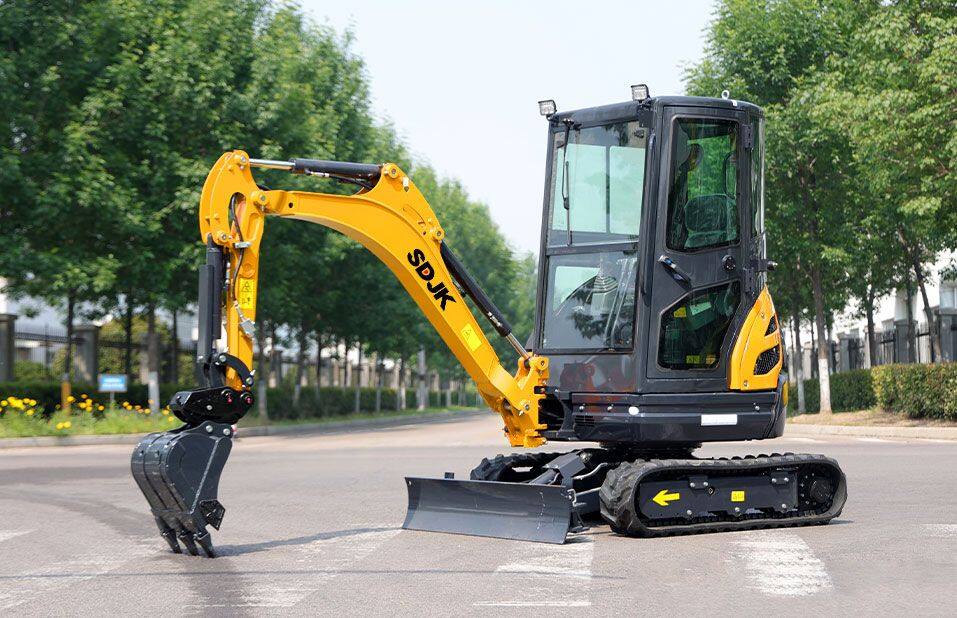

JKW-25S Mini Excavator

Power : 14kw
Operating Weight : 2500kg
Max. digging depth : 2300mm
