JKW-20

Are you looking for a 2-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-20 crawler excavator is the ideal choice. Powered by a LAIDONG engine delivering 18.1 kW at 2,600 rpm, the JKW-20 has an operating weight of 2 tons.

Operating weight2000kg

Power11.8kw

Features

This machine will become your best friend

Engine

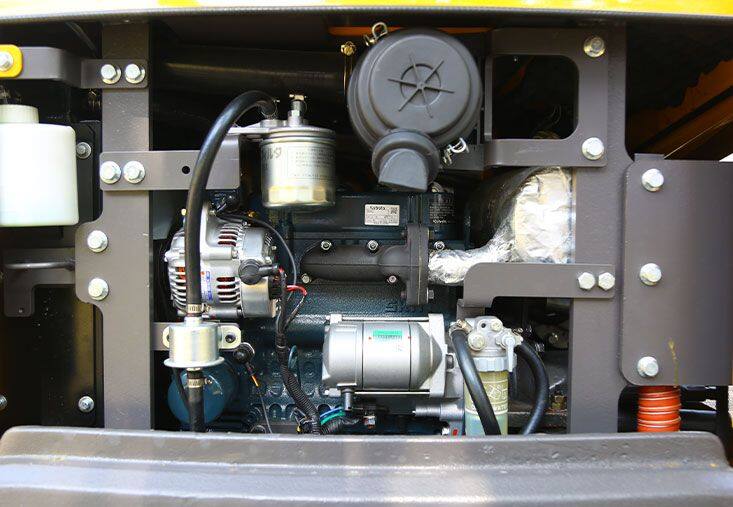

High-Performance Engine

Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from

Roof And Chassis, Strong And Durable

Roof And Chassis

SDJK series crawler excavators can be equipped with an extendable undercarriage system. Featuring a rubber track drive, the equipment operates with low noise and minimal vibration; it effectively prevents issues such as track misalignment, loosening, or detachment during operations on muddy or uneven terrain, as well as during climbing and turning maneuvers.

Hydraulic System

We understand that high-quality, efficient hydraulic systems are crucial to building market-leading excavators. engines, pumps, and hydraulic systems are perfectly synchronized to deliver maximum power and faster work cycles, enabling users to achieve greater productivity simultaneously.

Comfortable Environment

Comfortable-Environment

The operator environment is crucial when delivering performance and safety, and the seat position is ergonomic, providing excellent visibility in tight spaces while maintaining maximum stability.

About Parameters

JKW-20 Specifications
Overall dimensions	346812002270mm
Operating weight	2000KG
Bucket capacity	0.03m³
Working device form	Back-hoe
Engine model	Kubota /LAIDONG 385
Delivery capacity	1.617L
Rated output power	11.8/18.1 KW
Maximum torque	51.3/1800 N.m/r/min
Maximum travel speed	2/4km/h
Slewing speed	10 rpm
Maximum climbing ability	30°
Maximum excavation force	8KN
Total length(Transportation)	3110mm
Total width	1250mm
Total height(canopy/no canopy)	2280 (2242)mm
Bulldozer(Maximum cleaning depth)	290mm
Bulldozer(Maximum ground clearance height)	150mm
Ground pressure	0.3kgf/cm²
Trck(Material)	Rubber

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability..

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-16 Mini Excavator

Power : 19kw
Operating Weight : 1600kg
Max. digging depth : 1780mm

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm

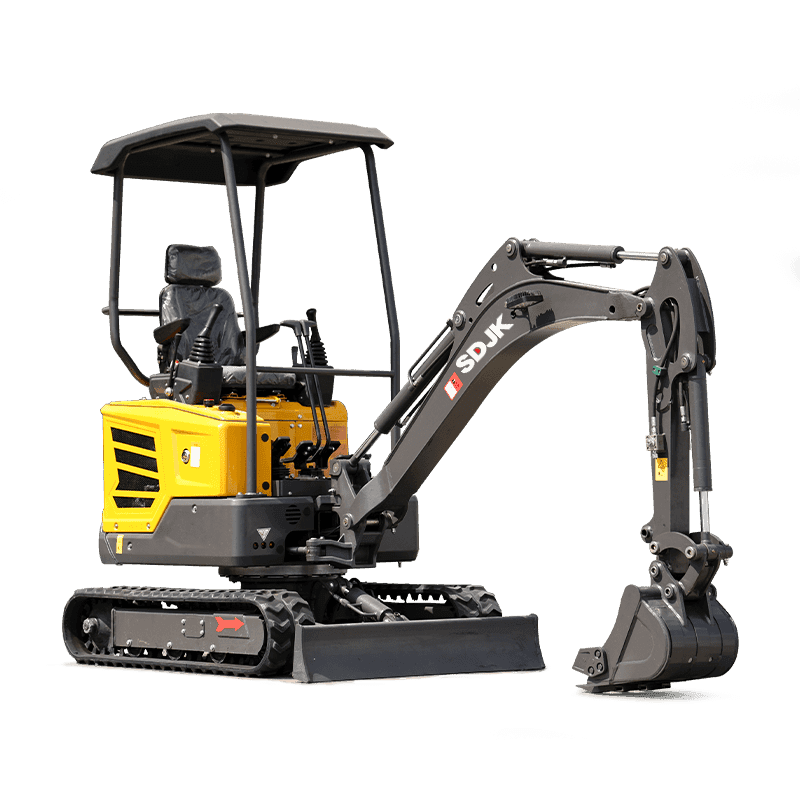

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm

JKW-25S Mini Excavator

Power : 14kw
Operating Weight : 2500kg
Max. digging depth : 2300mm
