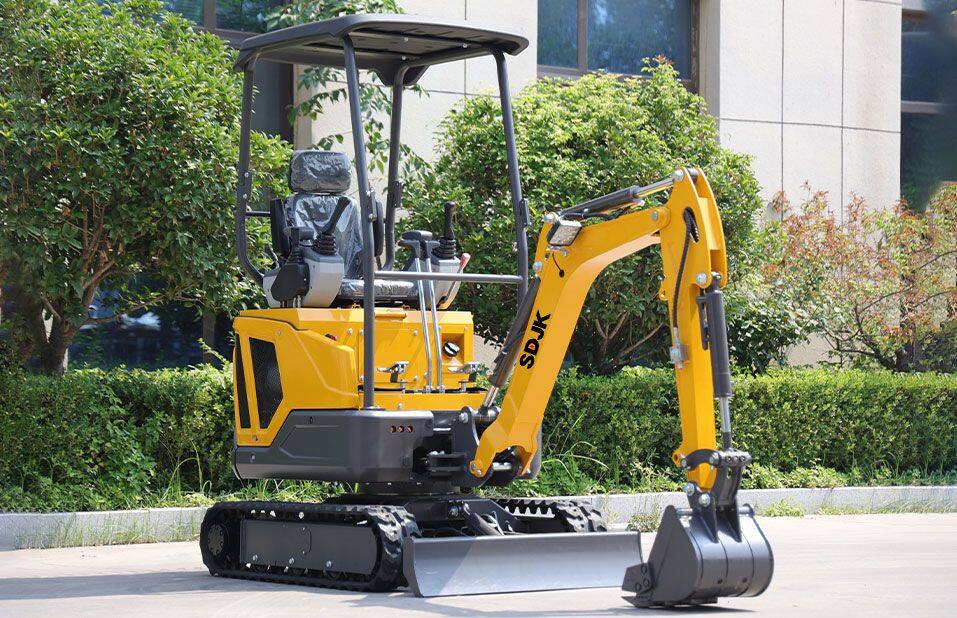

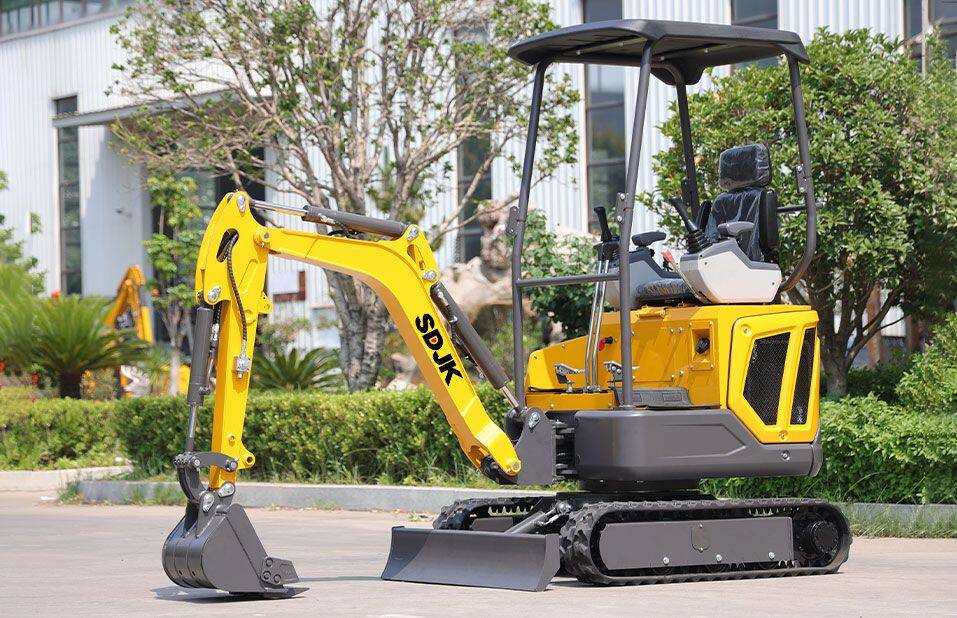

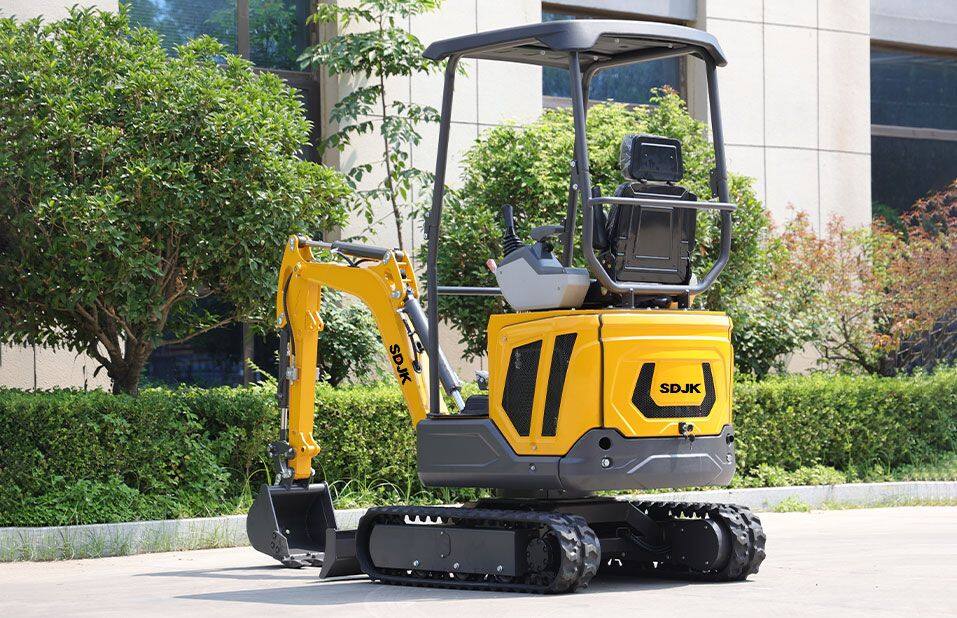

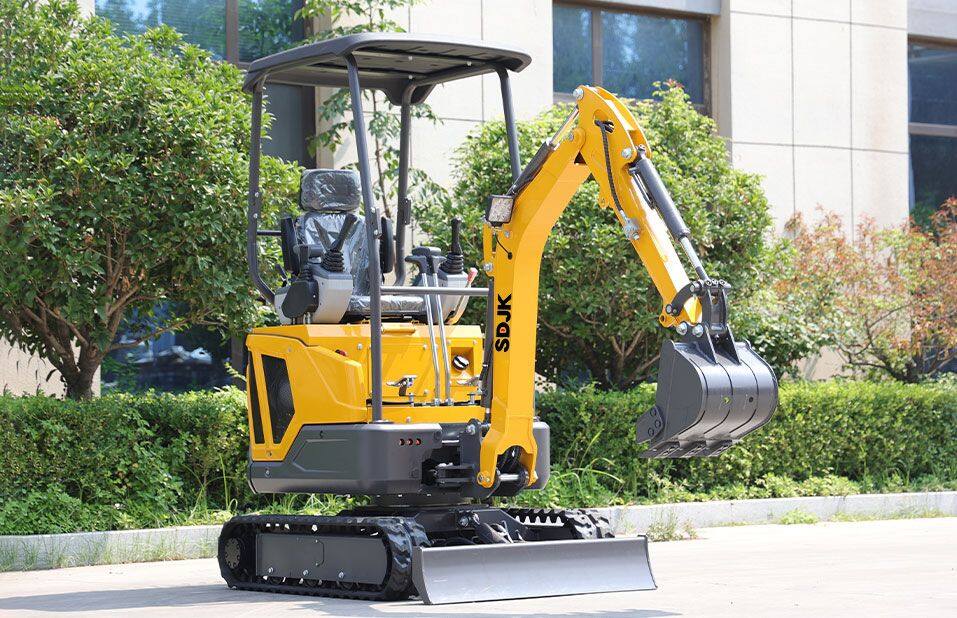

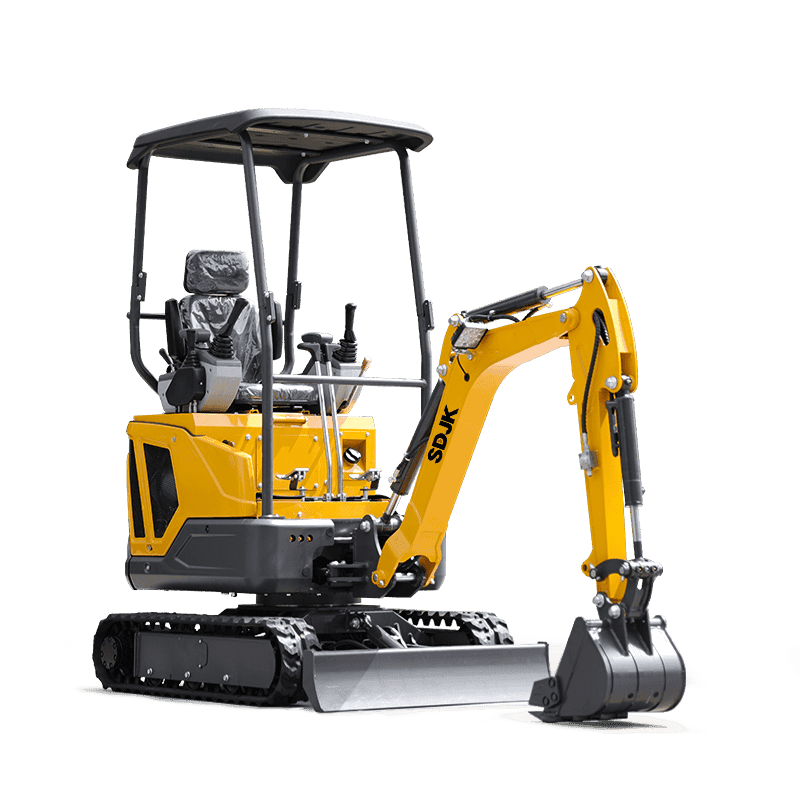

JKW-16

Are you looking for a 1.6-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-16 crawler excavator is the ideal choice. Powered by a LAIDONG engine delivering 19 kW at 2,400 rpm, the JKW-16 has an operating weight of 1.6 tons.

Operating weight1600kg

Power10.2kw

Features

This machine will become your best friend

Engine

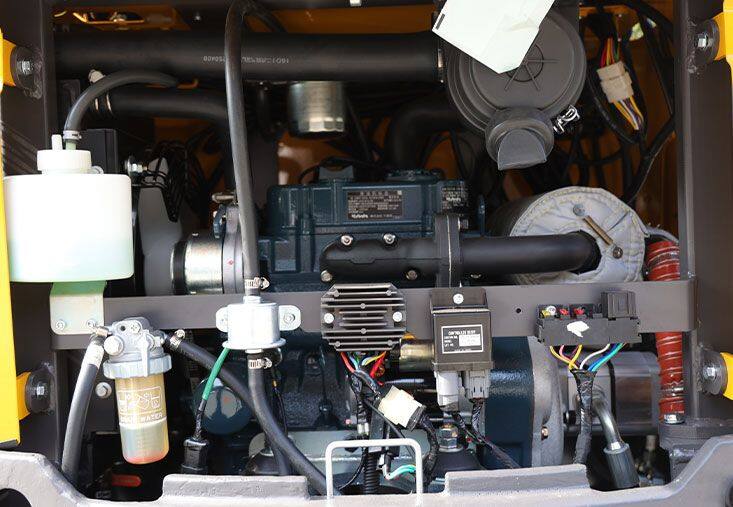

High-Performance Engine

The machine comes factory-equipped with a Japanese-made Kubota D722 three-cylinder, water-cooled diesel engine. Delivering genuine power and reliable quality with an exceptionally low failure rate, it offers excellent cold-start performance and fuel economy, making it perfectly suited for long-term operations in regions with extreme cold or complex weather conditions.

One-piece stamped, thickened chassis

Roof And Chassis

The chassis features a one-piece stamped design with seamless full-plate welding and is constructed from thickened channel steel, ensuring a symmetrical and balanced load-bearing structure. It resists deformation and cracking when operating on complex terrain—such as muddy, bumpy, or pothole-ridden surfaces—effectively eliminating the risk of chassis failure. With superior rigidity and high load-bearing capacity, it is perfectly suited for the most demanding operating conditions.

Hydraulic System

The machine utilizes top-tier domestic hydraulic components, featuring Beifang multi-way valves, Tianjin travel gear pumps, and genuine Hengli motors. The hydraulic system is precisely matched to ensure stable pressure and smooth operation, delivering sustained high performance under heavy loads.

Down-press safety pilot control

Comfortable-Environment

The entire series features down-acting hydraulic pilot controls and fully hydraulic multi-axis operation, delivering sensitive, precise, and smooth handling. Flow cuts off instantly when the control handle is raised; equipped with a mechanical safety lock, the system meets international safety standards, preventing accidental operation and ensuring operational safety.

About Parameters

JKW-16 Specifications
Engine Model	Kubota D722-E4B/LAIDONG LL380B
Engine Power	10.2kw/19kw/2400rpm
Operating weight	1600kg
Total Length(Transportation)	3060mm
Total Width	1100mm
Total Height	2220mm
Digging Depth Of Bulldozer	220mm
Bulldozer Lifting Height	150mm
Chassis Width	1100mm
Maximum Climbing Ability	30°
Maximum Excavation Force	8KN
Maximum Travel Speed	2.0km/h
Maximum Excavation Ground Distance	3380mm
Minimum Turning Radius At Front End	1350mm
Maximum Excavation Distance	3420mm
Maximum Vertical Arm Excavation Depth	1550mm
Bucket Capacity	0.03 m³
Slewing Speed	10rpm
Ground Pressure	0.3kgf/cm²
Trck	Rubber
Tension Type	Mechanical

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability..

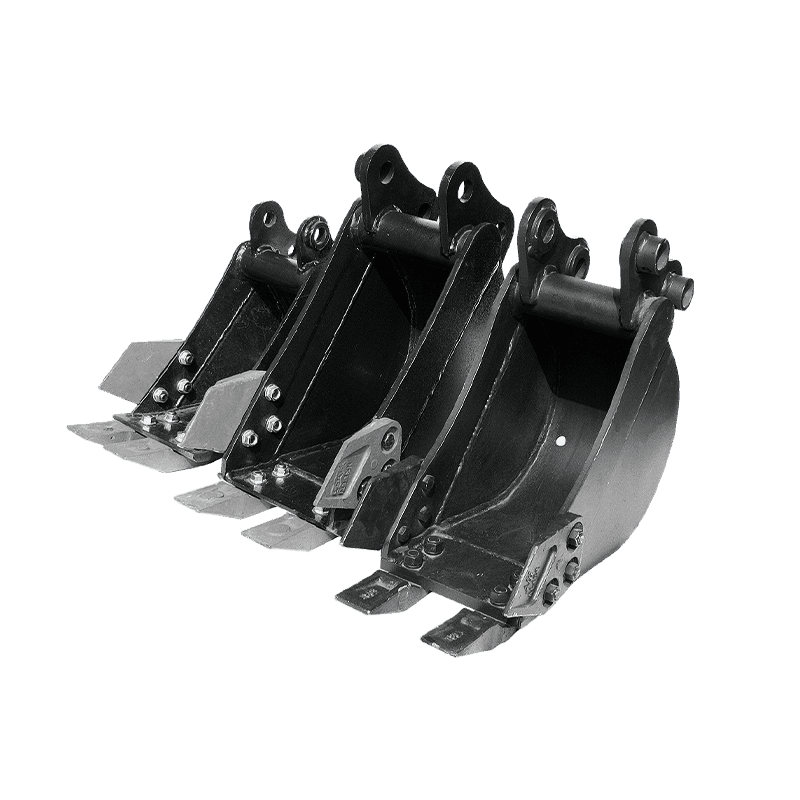

Narrow Bucket

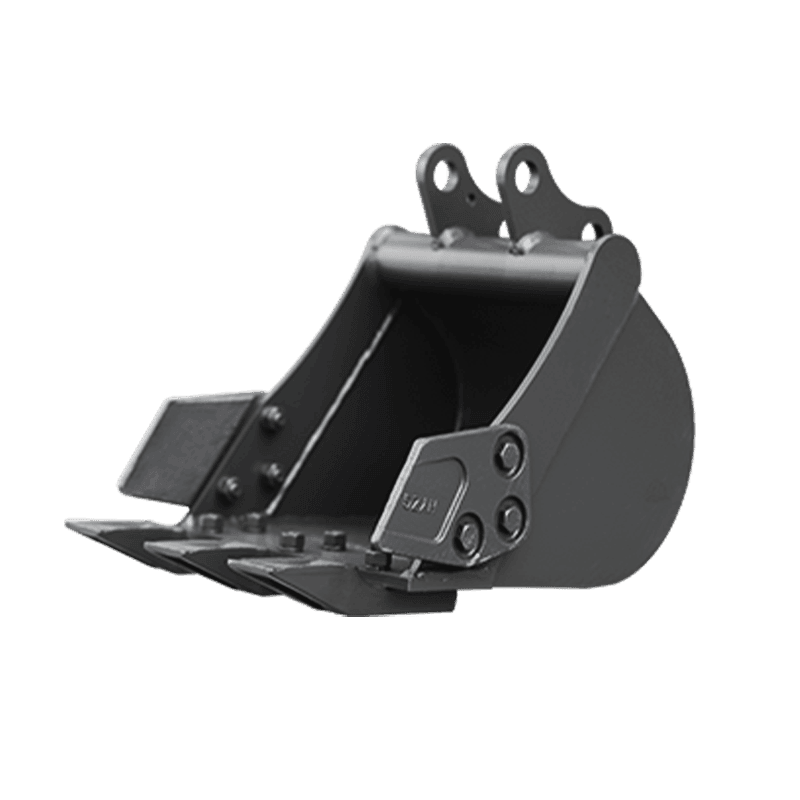

Standard Bucket

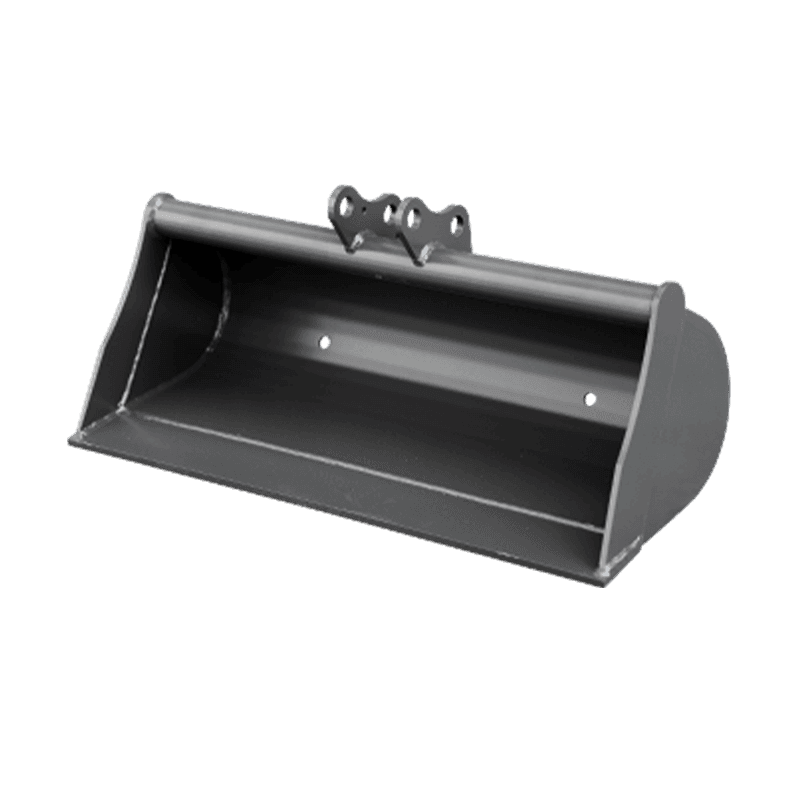

Toothless Bucket

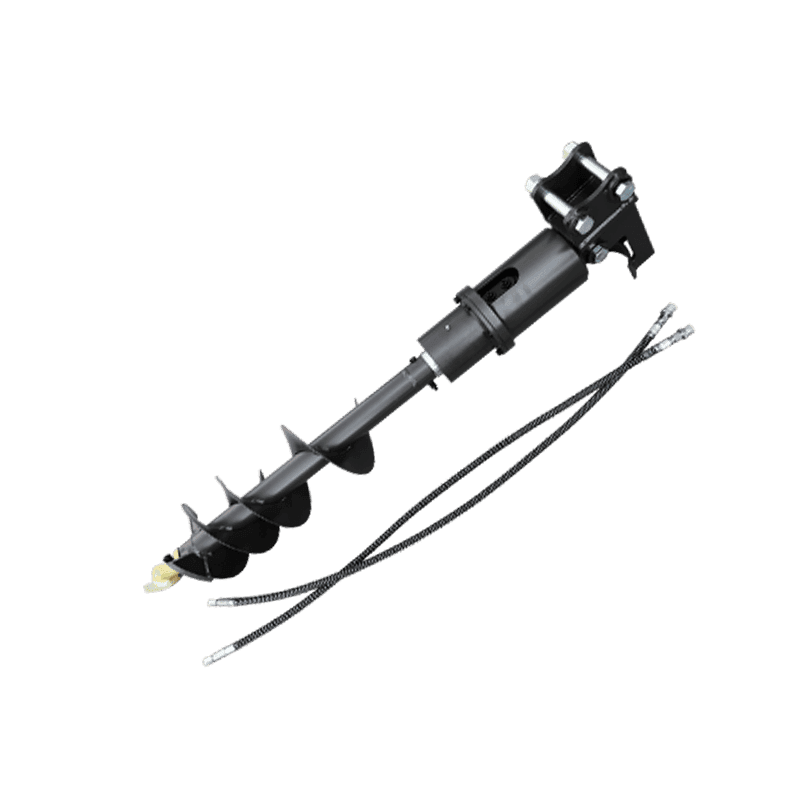

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

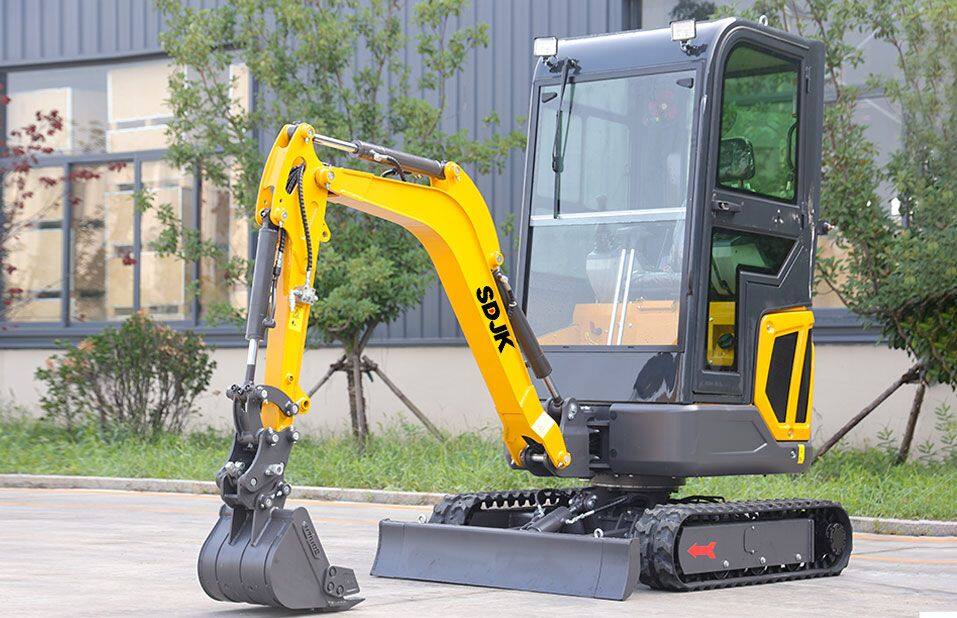

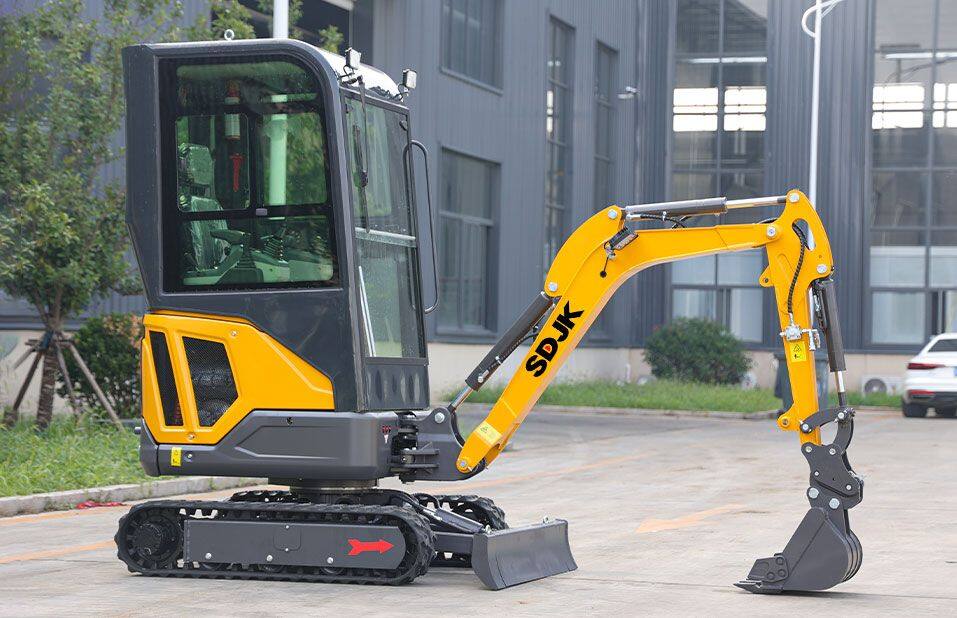

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

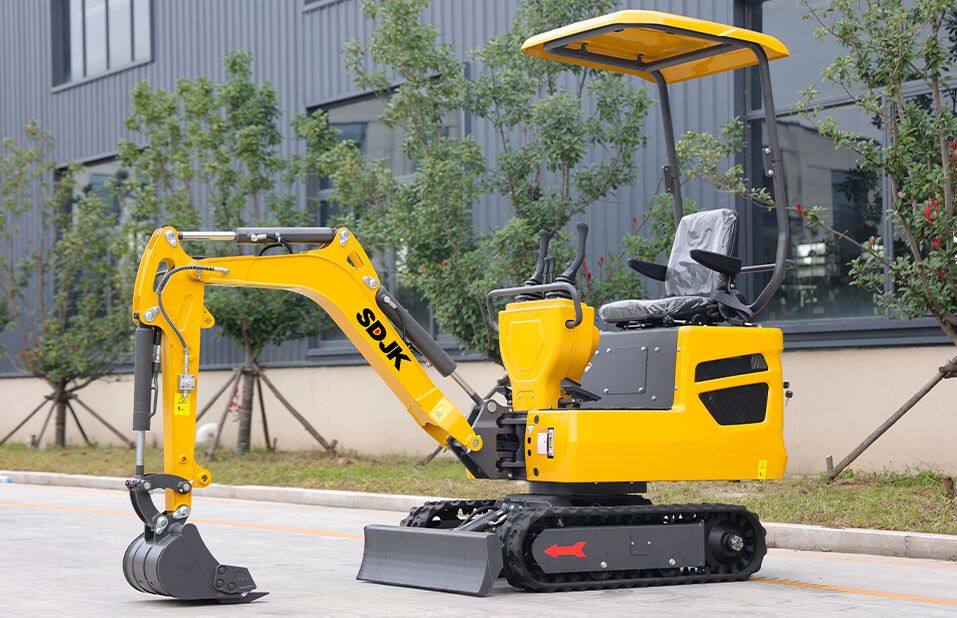

JKW-10 Mini Excavator

Power : 7.6kw
Operating Weight : 1000kg
Max. digging depth : 1725mm

JKW-10X Mini Excavator

Power : 7.6kw
Operating Weight : 1000kg
Max. digging depth : 1725mm

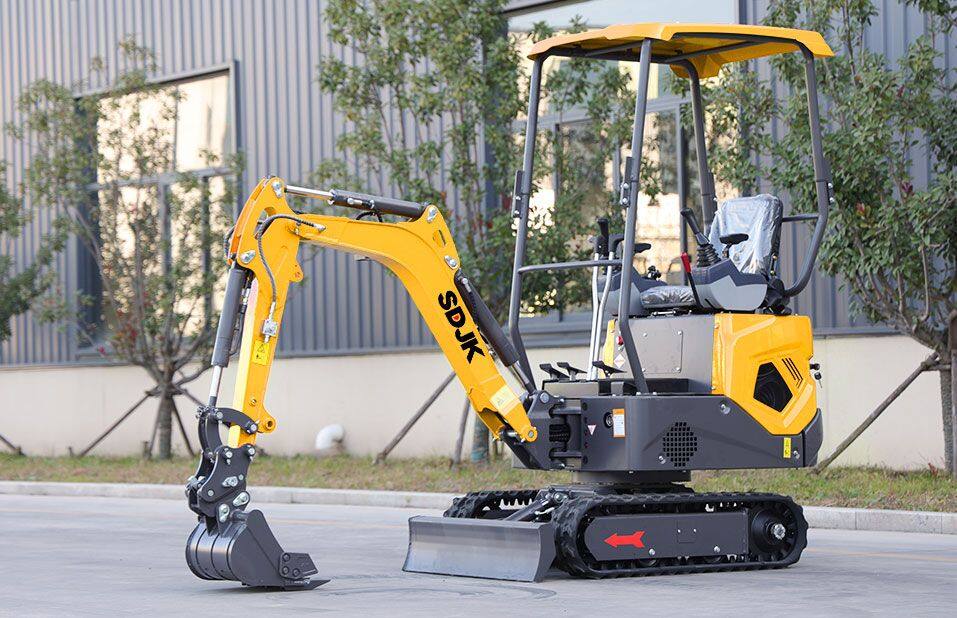

JKW-12S Mini Excavator

Power : 7.6kw
Operating Weight : 1200kg
Max. digging depth : 1725mm

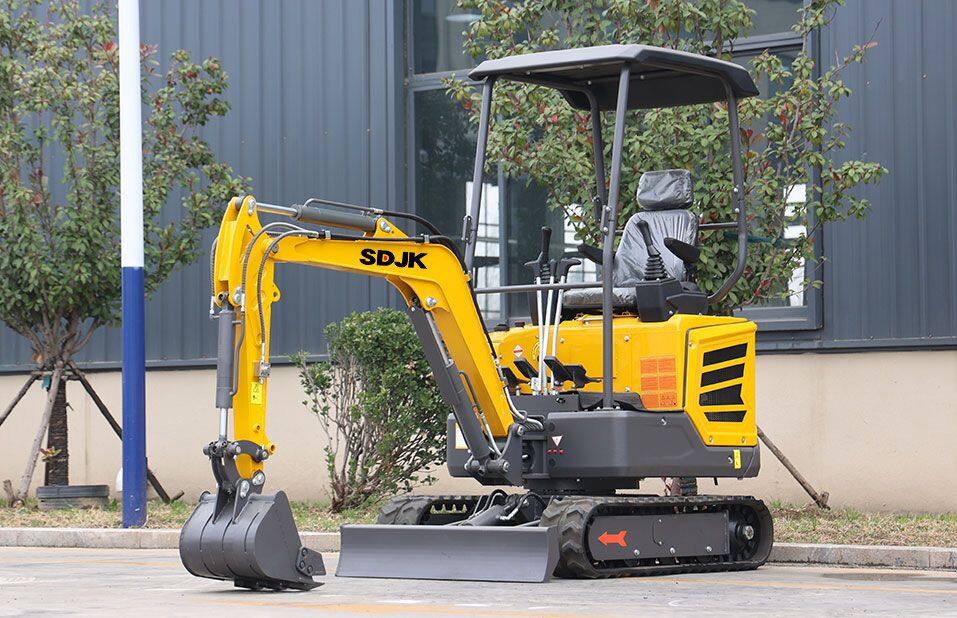

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm
