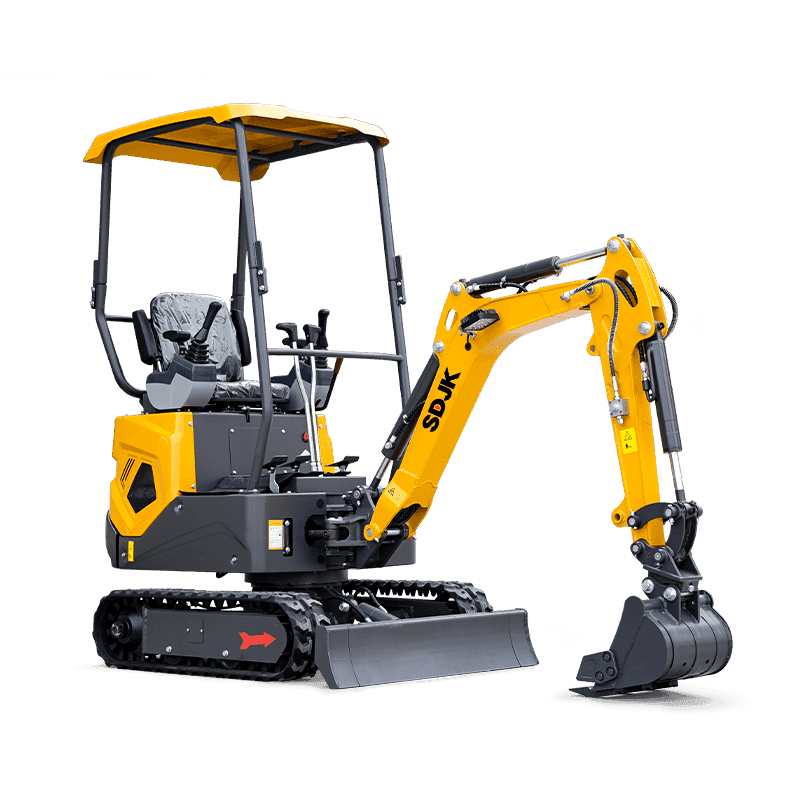

JKW-12S

Are you looking for a 1.2-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-12S crawler excavator is the ideal choice. Powered by a KOOP engine delivering 7.6 kW at 3,000 rpm, the JKW-12S has an operating weight of 1.2 tons.

Operating weight1200kg

Power7.6kw

Features

This machine will become your best friend

High-Performance Engine

Roof And Chassis

Hydraulic System

Comfortable-Environment

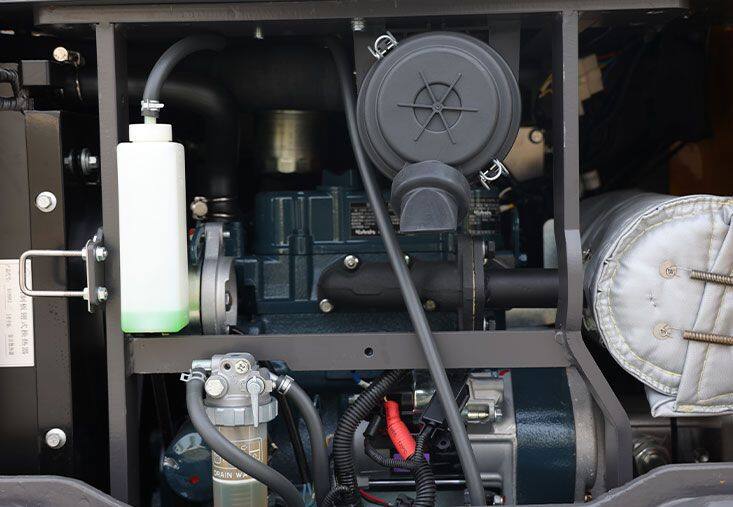

Engine

The engine compartment features an orderly layout that facilitates easy maintenance. Equipped with eight shock absorbers, it effectively minimizes machine vibration. It delivers stable power output, ensures smooth cold starts, offers low fuel consumption, and boasts excellent durability, making it capable of meeting all-weather operational demands.

About Parameters

JKW-12S Specifications
Chassis Width	930mm
Track Length	1200mm
Chassis Ground Clearance	370mm
Gradeability	30°
Track Width	180mm
Volume Of Fuel Tank	5.5L
Transport Length	2870mm
Excavator Height	2285mm
Overall Dimension	2870 x 930 x 2285mm
Engine Model	KOOP 192F/KUBOTA D722/BRIGGS & STRATTON
Engine Power	7.6kw/2400rpm;10.2 kw;10kw
Turning Radius	1490mm
Max. Digging Height	2490mm
Max. Dumping Height	1745mm
Max. Digging Depth	1725mm
Max. Digging Radius	3030mm
Max. Vertical Digging Depth	1655mm
Bucket Excavating Force	6.5KN
Operating Weight	1200kg

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability.

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG?

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-10 Mini Excavator

Power : 7.6kw
Operating Weight : 1000kg
Max. digging depth : 1725mm

JKW-12S Mini Excavator

Power : 7.6kw
Operating Weight : 1200kg
Max. digging depth : 1725mm

JKW-16 Mini Excavator

Power : 19kw
Operating Weight : 1600kg
Max. digging depth : 1780mm

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm
