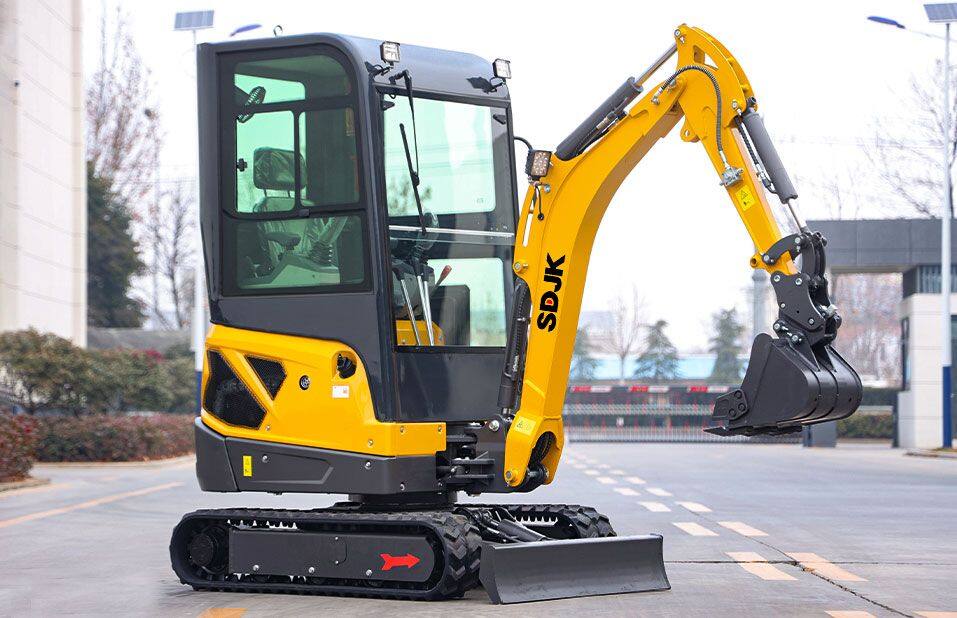

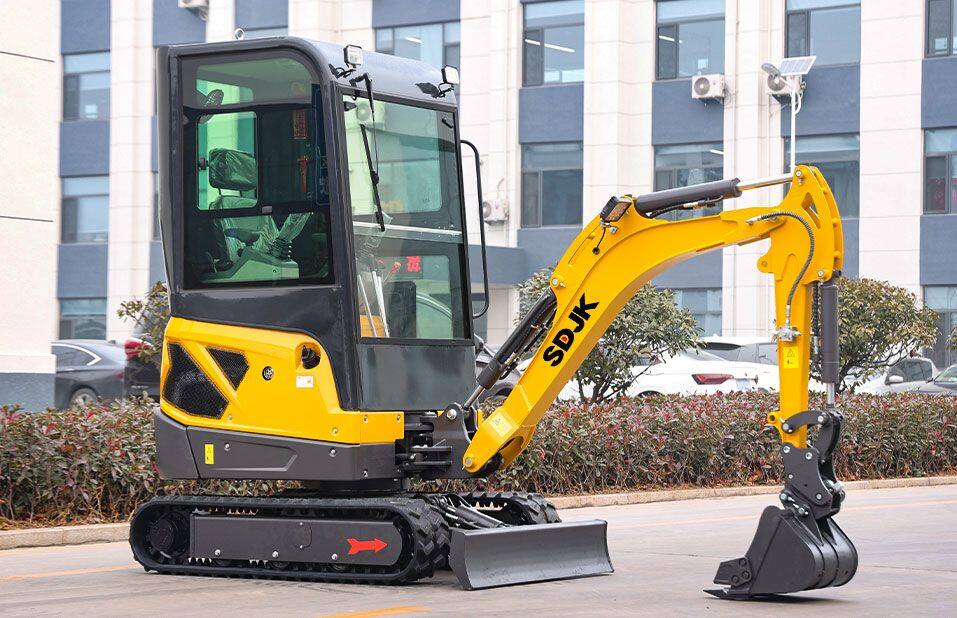

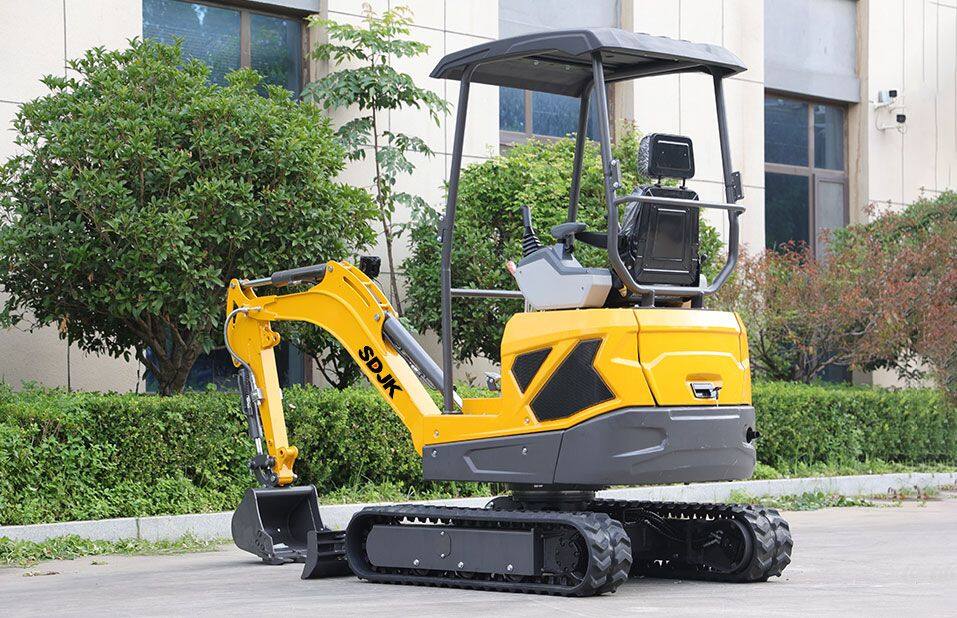

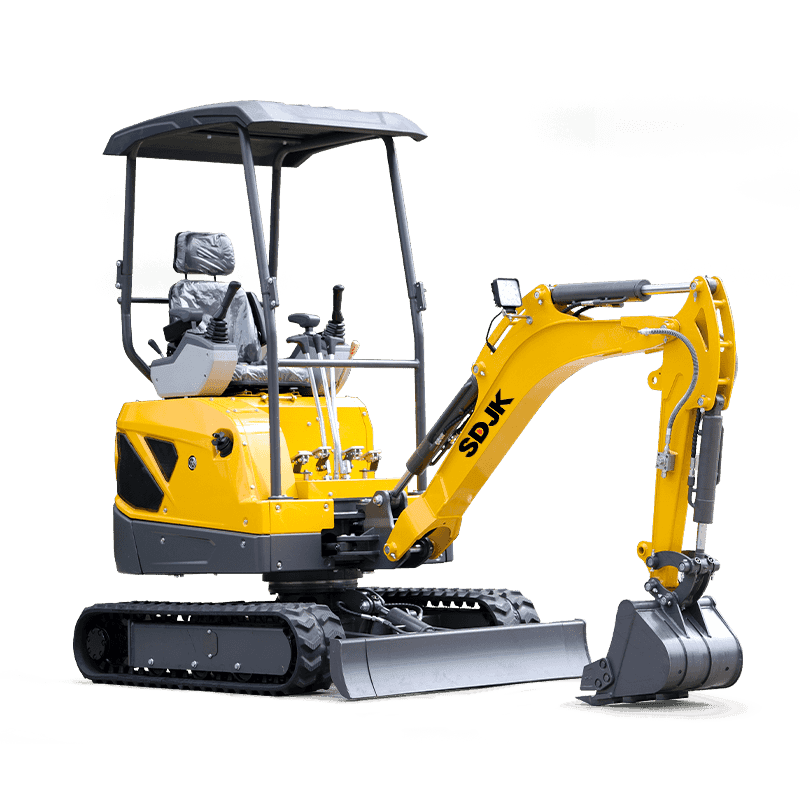

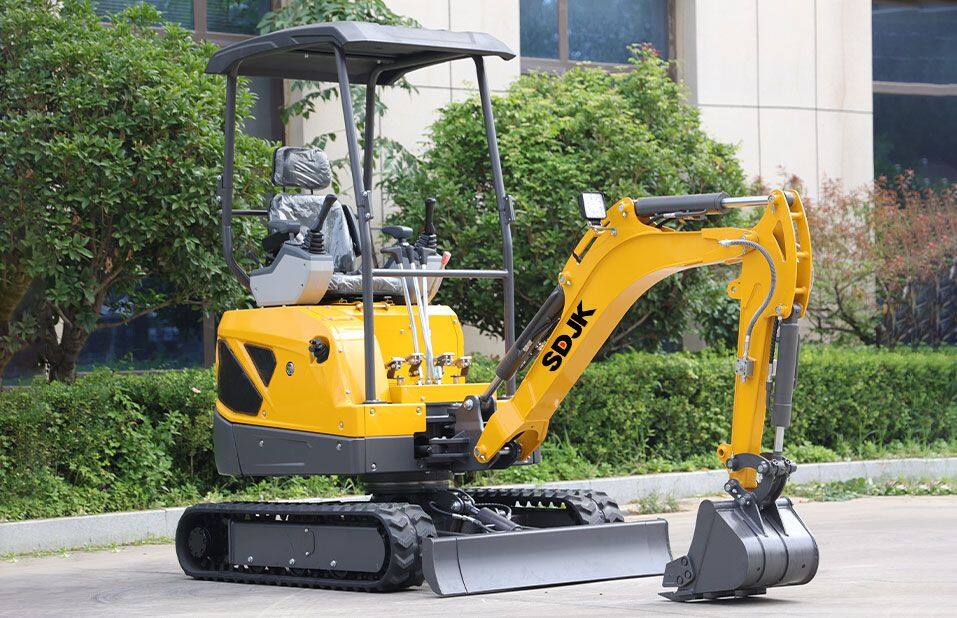

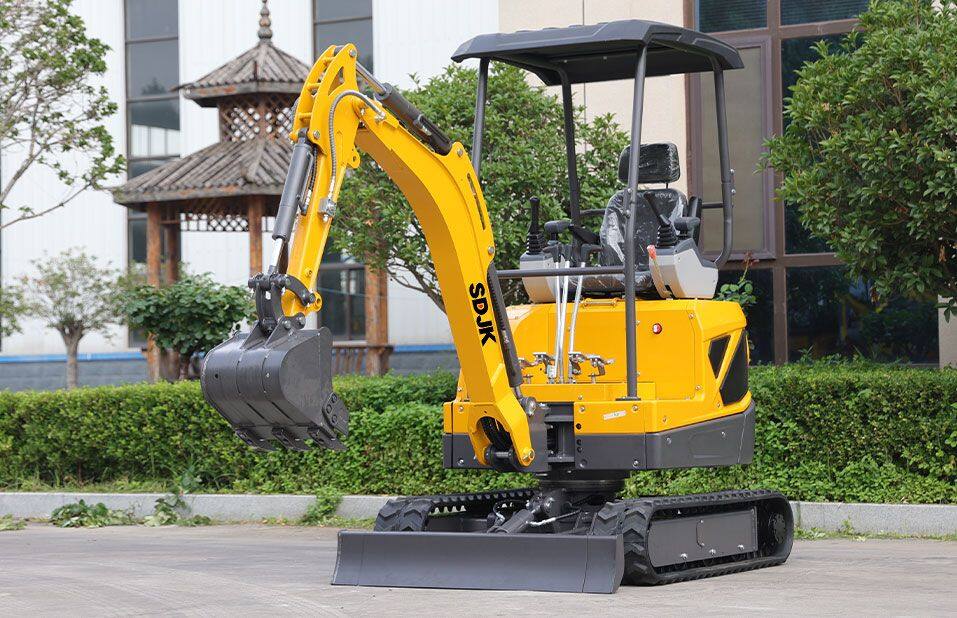

JKW-18

Are you looking for a 1.8-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-18 crawler excavator is the ideal choice. Powered by a LAIDONG engine delivering 18.1 kW at 2,600 rpm, the JKW-18 has an operating weight of 1.8 tons.

Operating weight1800kg

Power18.1kw

Features

This machine will become your best friend

Engine

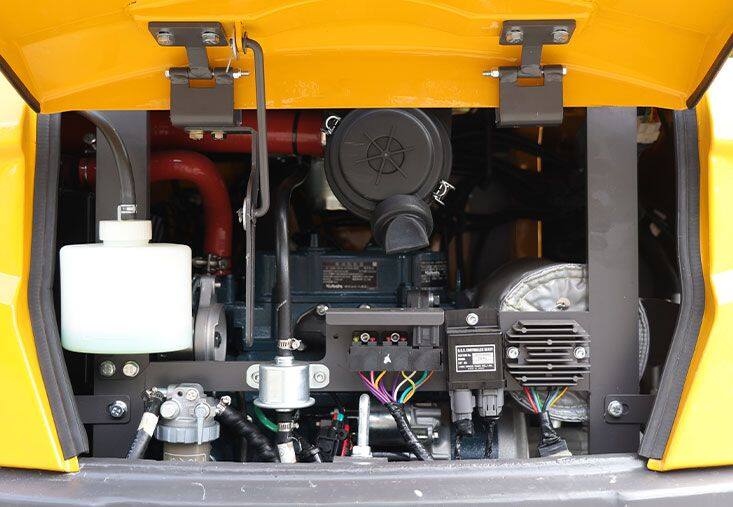

High-Performance Engine

The machine is powered by a genuine, imported Kubota D902 three-cylinder, water-cooled, high-output diesel engine. It delivers robust power and superior fuel efficiency, while offering excellent cold-start performance, making it perfectly suited for demanding construction environments in extremely cold regions.

Roof And Chassis, Strong And Durable

Travel motor

The travel motor features a high-end, embedded, and concealed design that significantly enhances dust and water resistance, effectively protecting core travel components and extending the equipment's service life. It also offers dual-speed travel modes, enabling faster speeds on flat ground and superior traction for climbing operations.

Hydraulic System

We understand that high-quality, efficient hydraulic systems are crucial to building market-leading excavators. engines, pumps, and hydraulic systems are perfectly synchronized to deliver maximum power and faster work cycles, enabling users to achieve greater productivity simultaneously.

Down-press safety pilot control

Comfortable-Environment

The entire series features down-acting hydraulic pilot controls and fully hydraulic multi-axis operation, delivering sensitive, precise, and smooth handling. Flow cuts off instantly when the control handle is raised; equipped with a mechanical safety lock, the system meets international safety standards, preventing accidental operation and ensuring operational safety

About Parameters

JKW-18 Specifications
Bucket Capacity	0.03 m³
Chassis Width	1100 mm
Track Length	1472 mm
Chassis Ground Clearance	402 mm
Gradeability	35°
Track Width	230mm
Volume of fuel tank	19L
Transport Length	3110 mm
Excavator Height	2280 mm
Overall Dimension	311011002280 mm
Engine Model	LAIDONG 385/Kubota D722
Engine Power	28 kw/10.2 kw
Turning Radius	1418mm
Max. Digging Height	3010mm
Max. Dumping Height	2285mm
Max. Digging Depth	2050mm
Max. Digging Radius	3260mm
Max. Vertical Digging Depth	2010mm
Maximum Bulldozing Height	290mm
Operating Weight	1800kg

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability..

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-12S Mini Excavator

Power : 7.6kw
Operating Weight : 1200kg
Max. digging depth : 1725mm

JKW-16 Mini Excavator

Power : 19kw
Operating Weight : 1600kg
Max. digging depth : 1780mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm

JKW-18 Mini Excavator

Power : 18.1kw
Operating Weight : 1800kg
Max. digging depth : 2050mm
