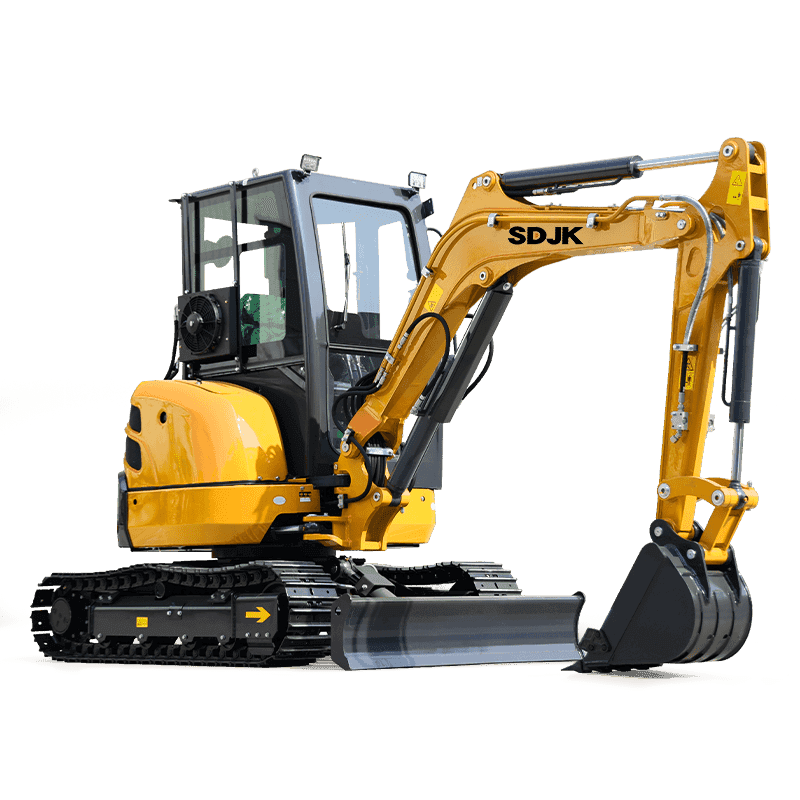

JKW-35S

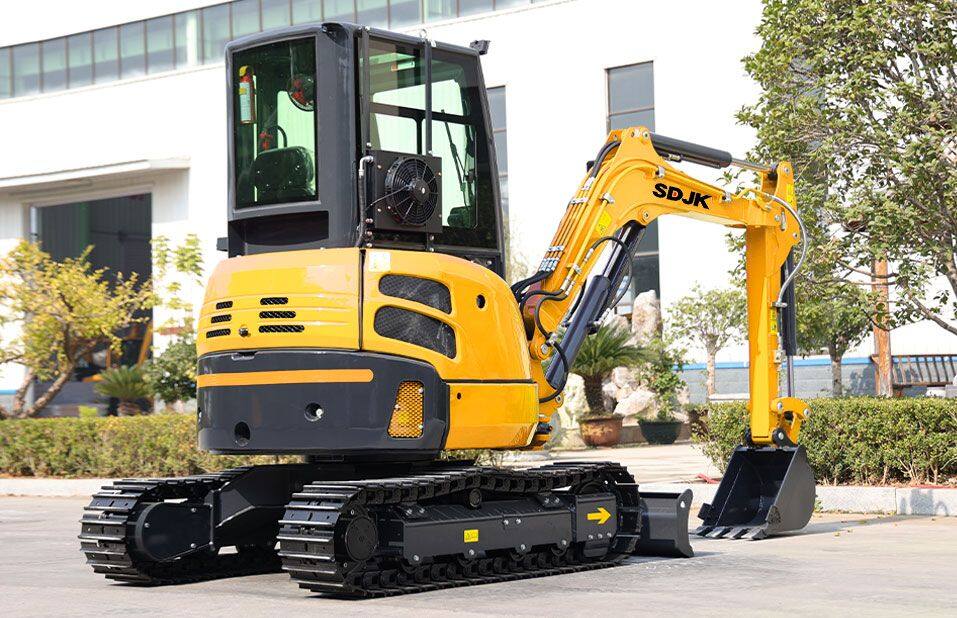

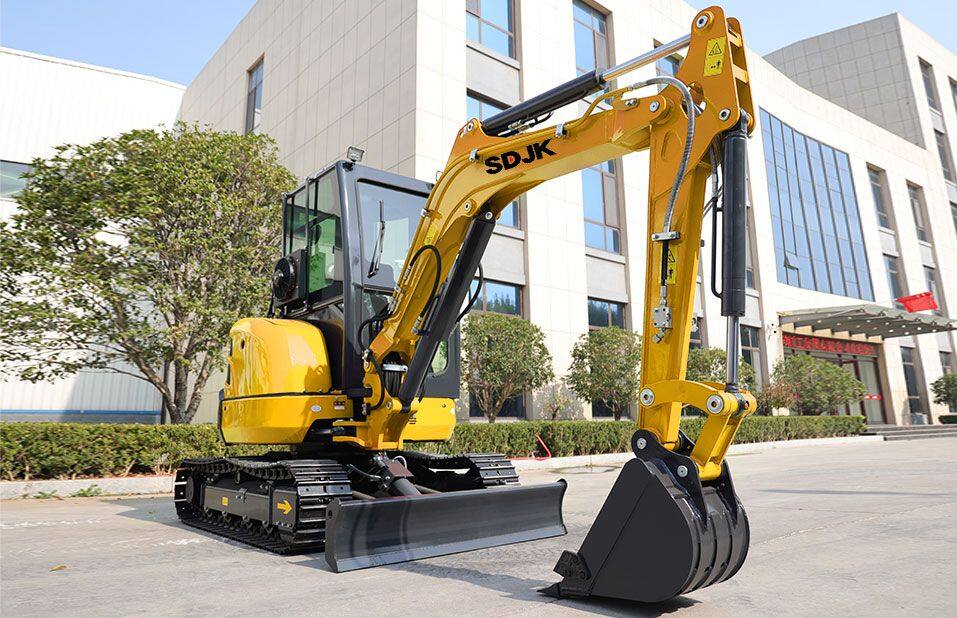

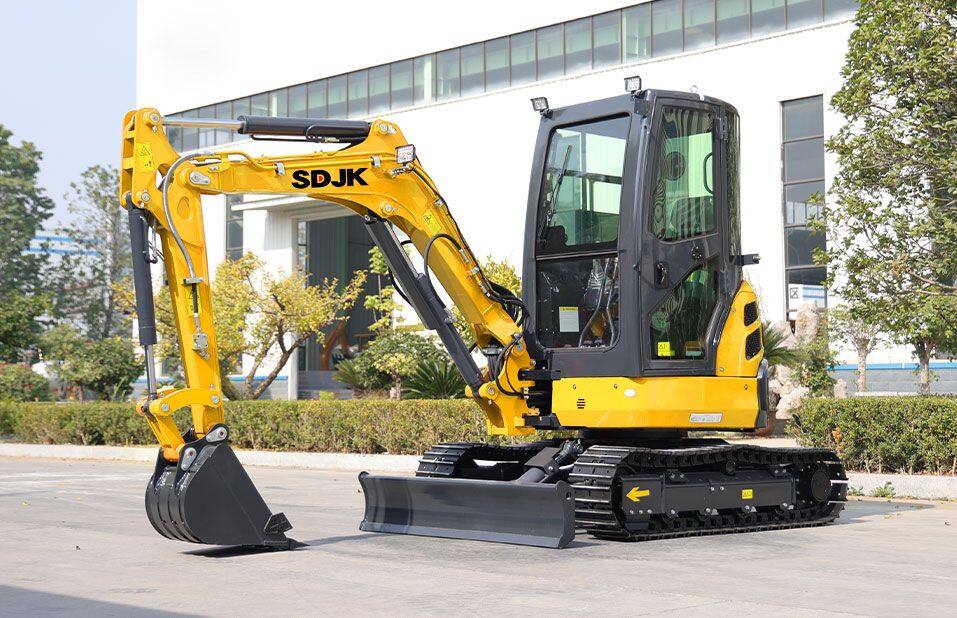

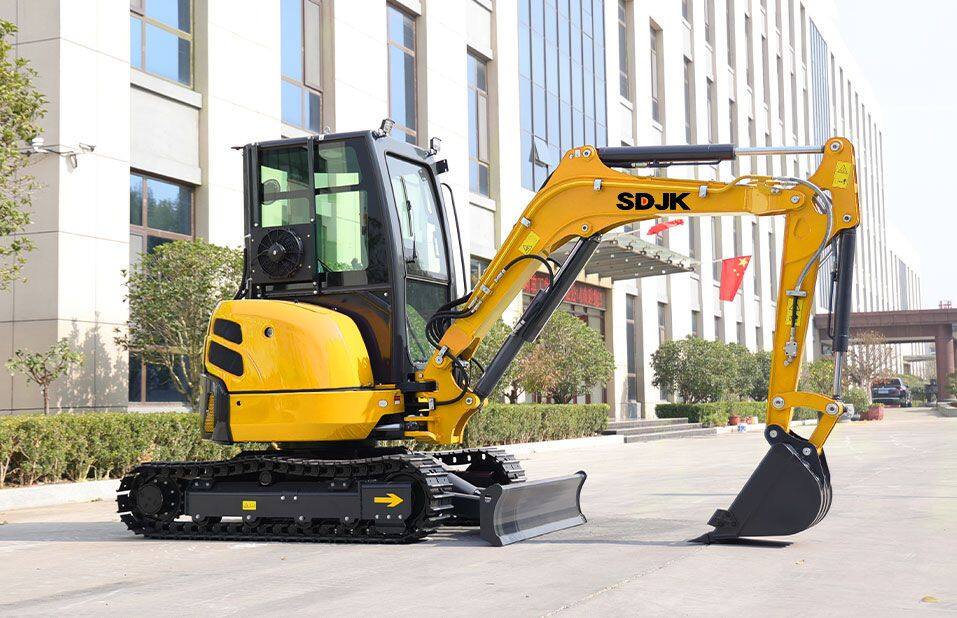

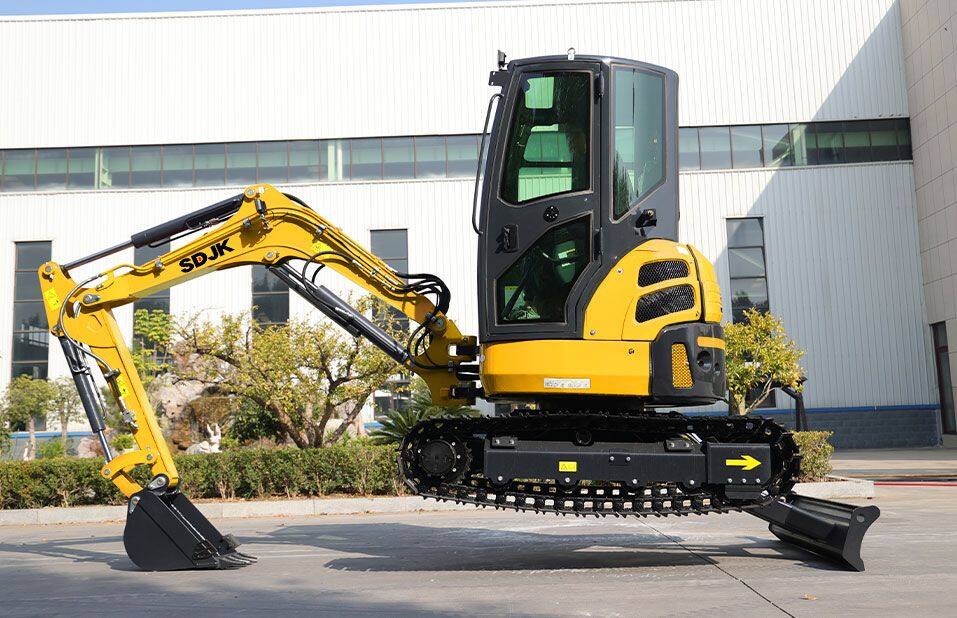

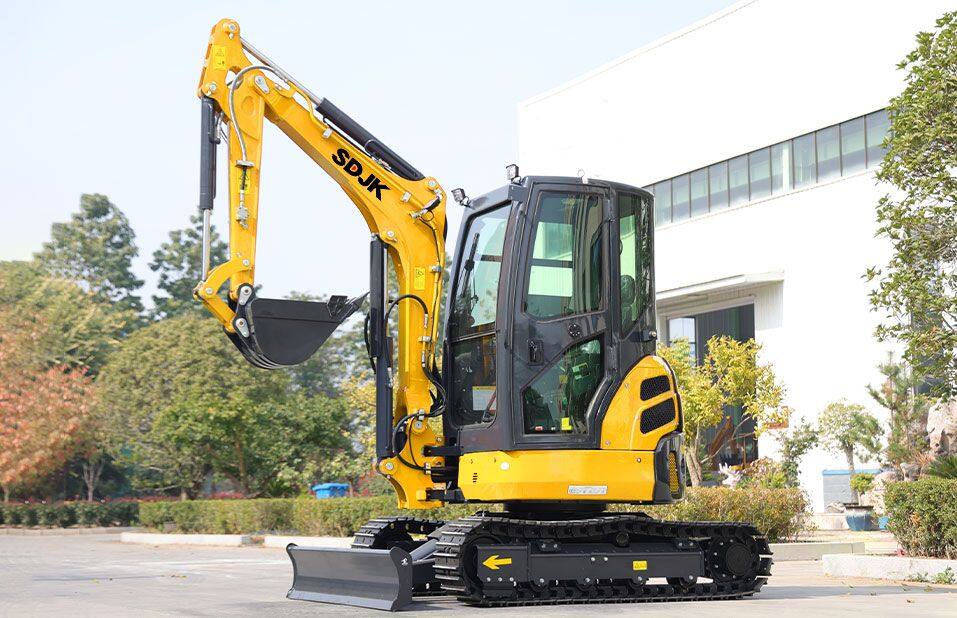

Are you looking for a 3.5-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-35S crawler excavator is the ideal choice. Powered by a Yanmar engine, the JKW-35S delivers 18.2 kw of power at 2,200 rpm and has an operating weight of 3.5 tons.

Operating weight3500kg

Power18.2kw

Features

This machine will become your best friend

High-Performance Engine

Roof And Chassis

Hydraulic System

Comfortable-Environment

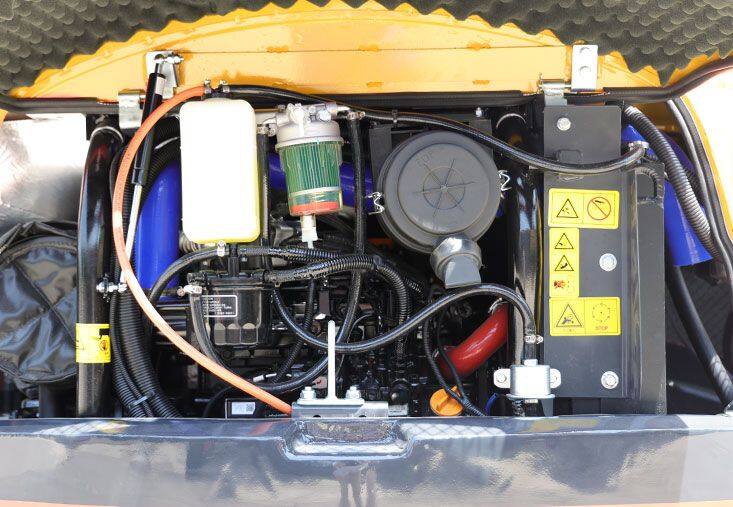

Engine

Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from

About Parameters

JKW-30 Specifications
Overall dimensions	448515502435mm
Machine weight	3500kg
Bucket capacity	0.09m³
Engine model	3TN88F-SC
Displacement	1.642L
Power output	18.2kw/2200rpm
Swing speed	8.5r/min
Travel speed	3.0/4.2km/h
Swing angle	70/50°
Gradeability	58% (30) (°)
Average ground pressure	28kPa
Bucket digging force	26.5KN
Fuel tank capacity	43L
Maximum digging height	4600mm
Maximum dumping height	3175mm
Maximum digging depth	2880mm
Maximum vertical digging depth	2305mm
Maximum digging radius	4965mm
Maximum digging radius at ground level	4845mm
Minimum front swing radius	2035mm
Swing center to track end	1030mm
Dozer blade width	1550mm
Dozer blade height	335mm
Maximum dozing height	360mm
Maximum dozing depth	340mm

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability.

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG?

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-28S Mini Excavator

Power : 14kw
Operating Weight : 2800kg
Max. digging depth : 2820mm

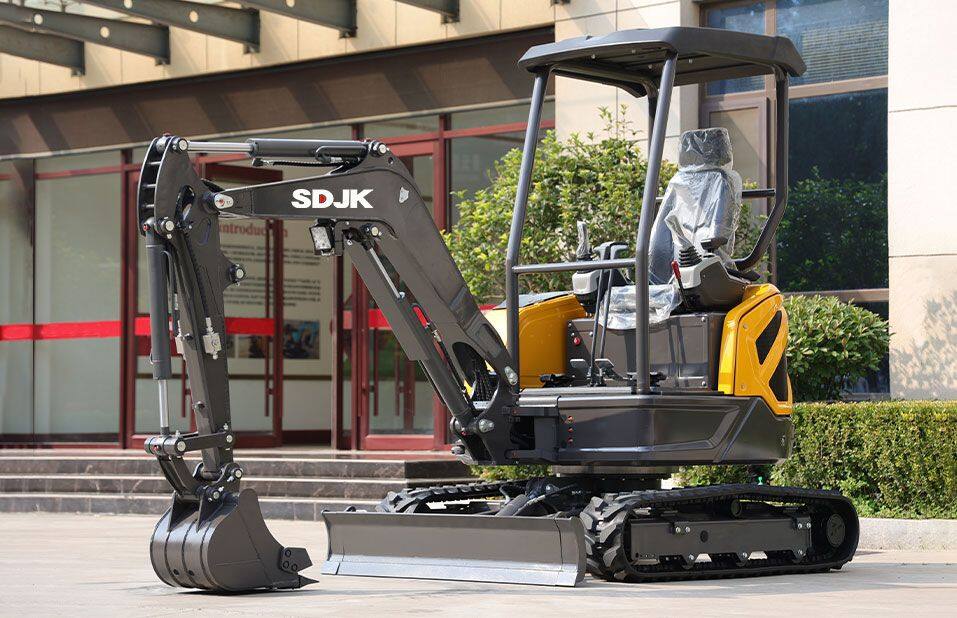

JKW-30 Mini Excavator

Power : 15.6kw
Operating Weight : 3000kg
Max. digging depth : 2260mm

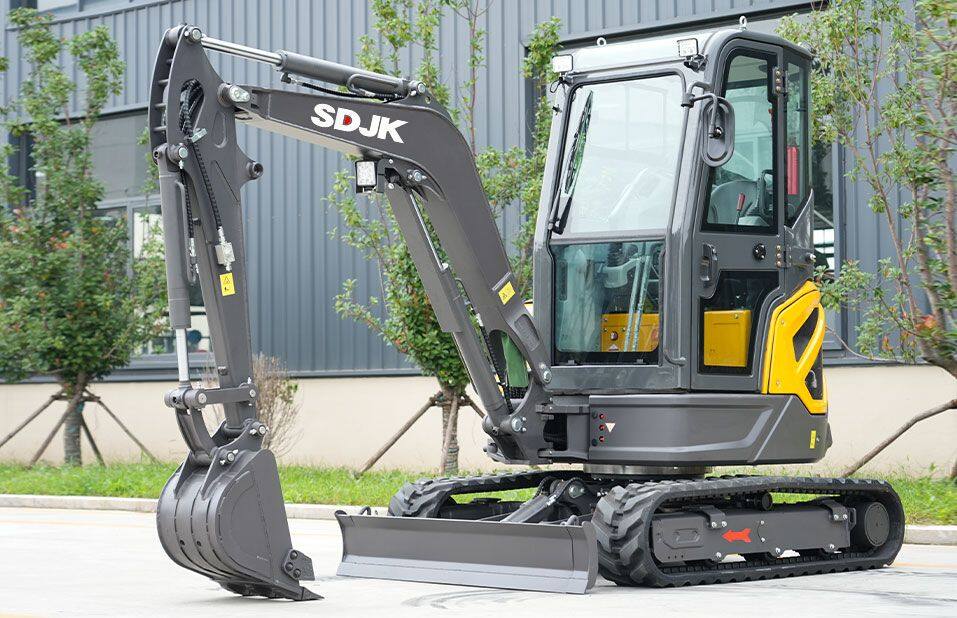

JKW-35 Mini Excavator

Power : 15.6kw
Operating Weight : 3500kg
Max. digging depth : 2600mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm
