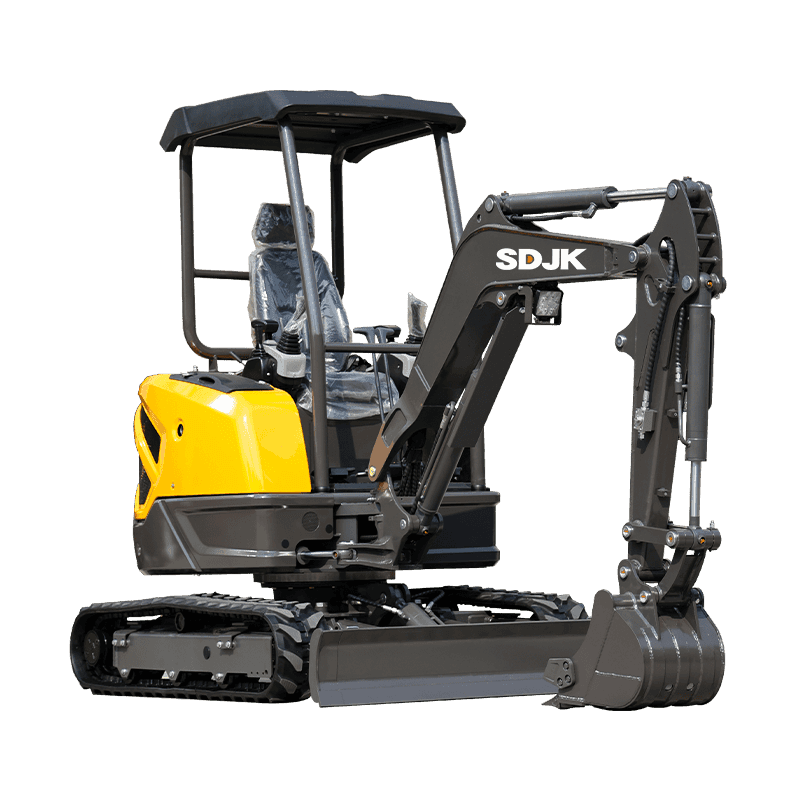

JKW-30

Are you looking for a 3-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-30 crawler excavator is the ideal choice. Powered by a Kubota engine delivering 15.6 kW at 2,400 rpm, the JKW-30 has an operating weight of 3 tons.

Operating weight3000kg

Power15.6kw

Features

This machine will become your best friend

High-Performance Engine

Roof And Chassis

Hydraulic System

Comfortable-Environment

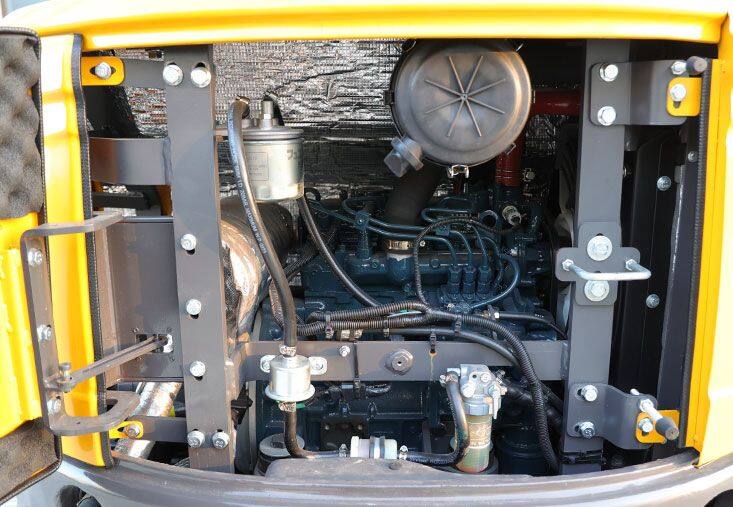

Engine

The machine comes factory-equipped with a high-output, three-cylinder, water-cooled Kubota D1105 diesel engine imported from Japan. It features abundant power reserves, proven and stable performance, and fuel efficiency. With excellent cold-start capabilities, it operates reliably under extreme conditions—including intense cold, high heat, and heavy dust.

About Parameters

JKW-30 Specifications
Machine Weight	3000kg
Bucket Capacity	0.06m³
Model	D1105
No.of cylinders	3
(GB/T17692)Rated net power	15.6kw/2400rpm
Maximum torque/speed	70.3/(1600r/min)N.m
Displacement	1.123L
Travel speed	3.1/2km/h
Gradeability	≤30°
Bucket digging force	20KN
Arm digging force	12KN
Maximum tractive force	28KN
Fuel tank capacity	35L
Hydraulic tank capacity	32L
Length of arm	1100mm
Maximum Digging Height	3950mm
Maximum Dumping Height	2800mm
Maximum Digging Depth	2260mm
Maximum Vertical Wall Digging Depth	1820mm
Maximum Digging Radius	4230mm
Maximum Dozer Lifting Height	200mm
Maximum Dozer Cutting Depth	300mm

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability.

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG?

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-25S Mini Excavator

Power : 14kw
Operating Weight : 2500kg
Max. digging depth : 2300mm

JKW-26S Mini Excavator

Power : 14kw
Operating Weight : 2600kg
Max. digging depth : 2320mm

JKW-28S Mini Excavator

Power : 14kw
Operating Weight : 2800kg
Max. digging depth : 2820mm

JKW-35S Mini Excavator

Power : 18.2kw
Operating Weight : 3500kg
Max. digging depth : 2880mm
