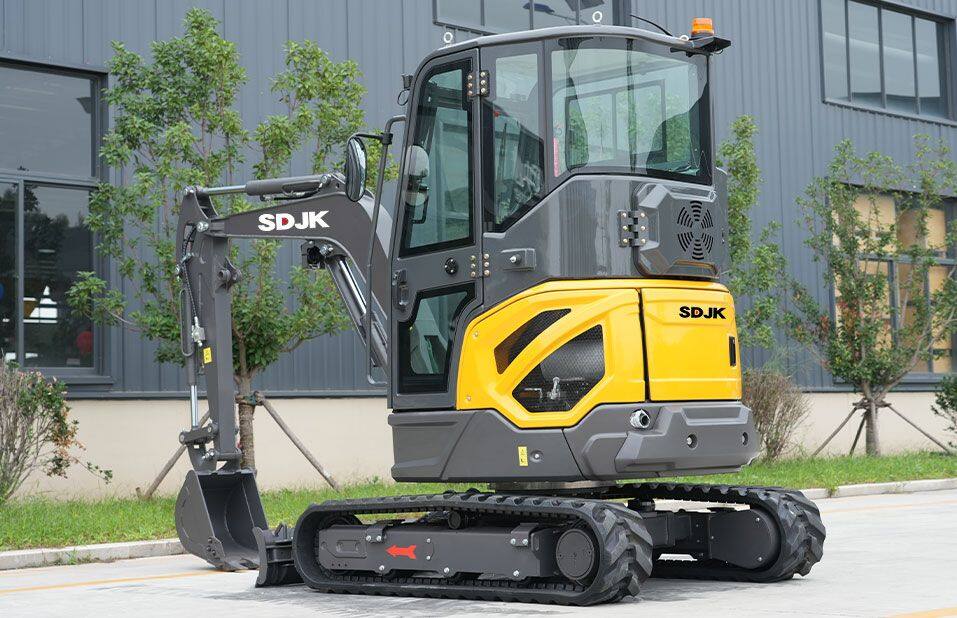

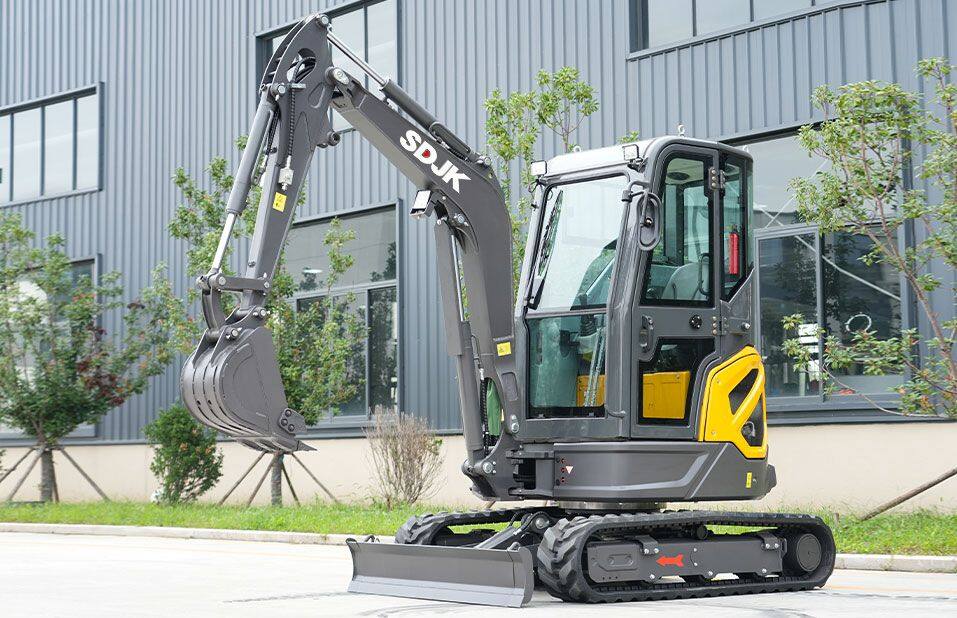

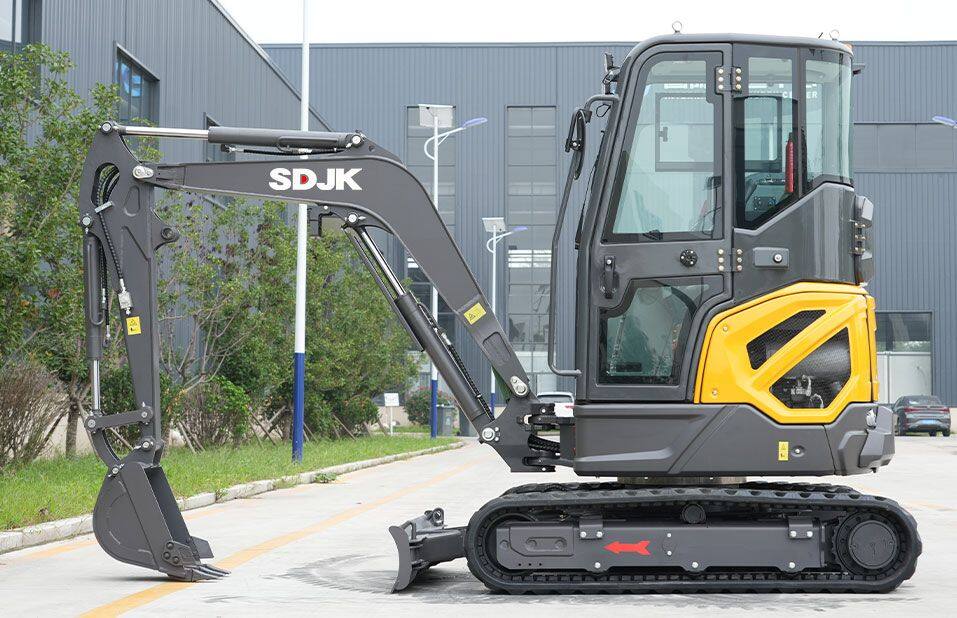

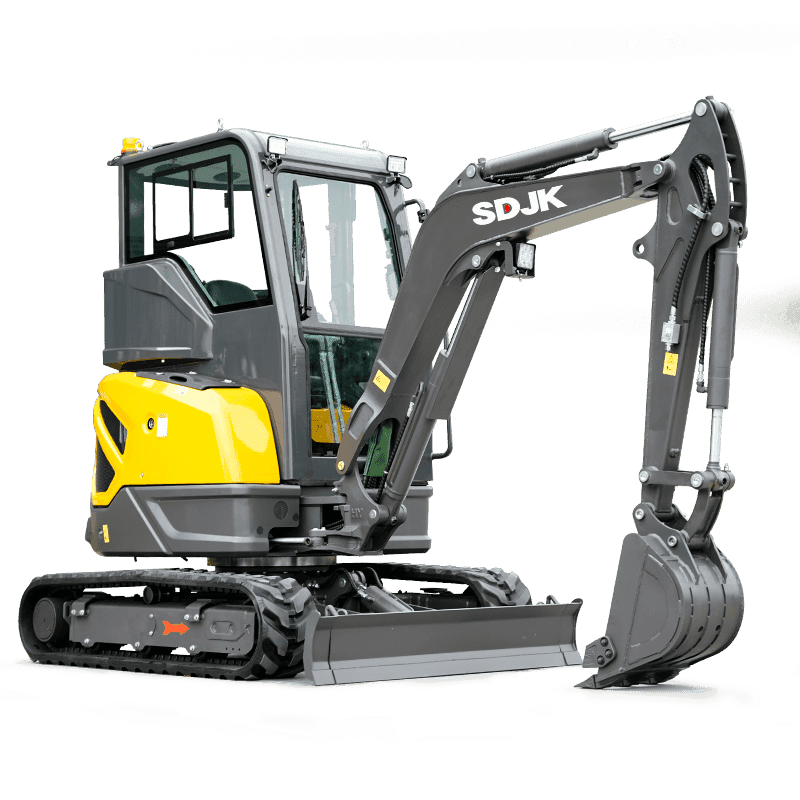

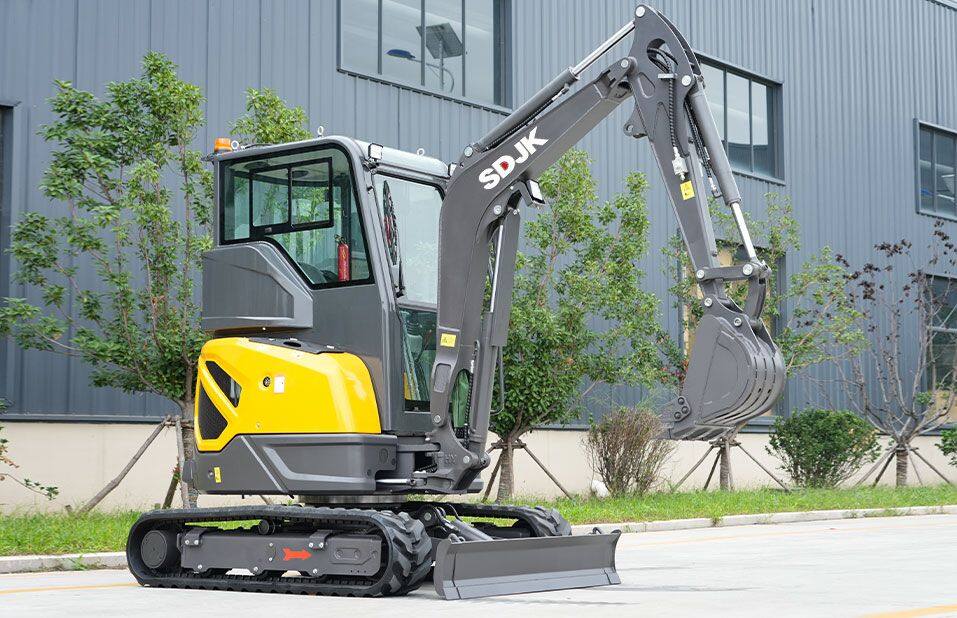

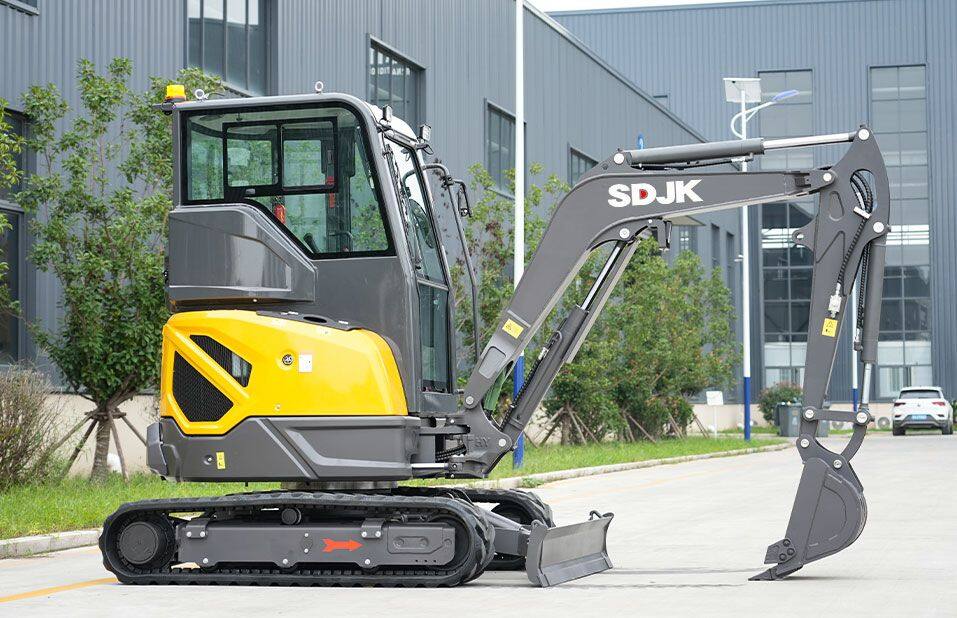

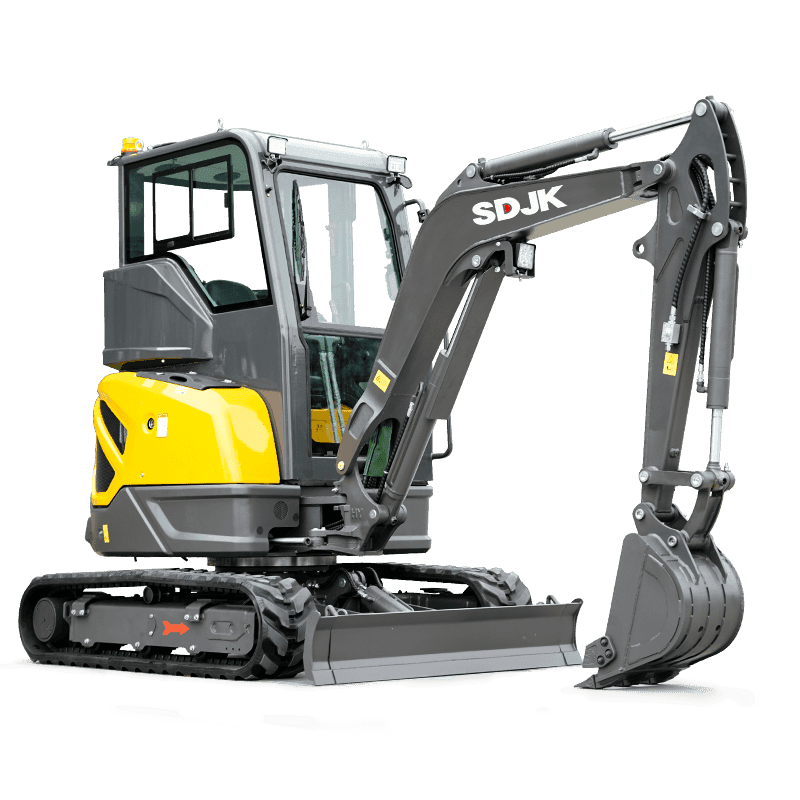

JKW-35

Are you looking for a 3.5-ton excavator that is efficient, versatile, powerful, comfortable and safe to operate, and easy to maintain? The JKW-35S crawler excavator is the ideal choice. Powered by a Yanmar engine, the JKW-35S delivers 18.2 kw of power at 2,200 rpm and has an operating weight of 3.5 tons.

Operating weight3500kg

Power15.6kw

Features

This machine will become your best friend

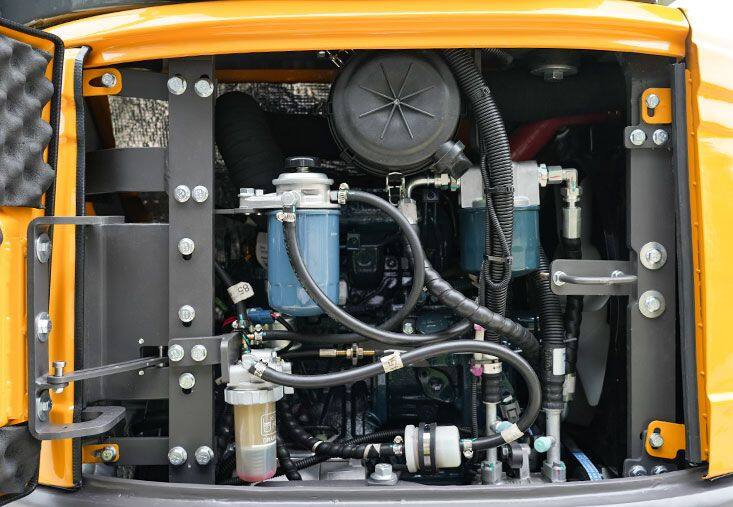

Engine

High-Performance Engine

The machine comes factory-equipped with a high-output, three-cylinder, water-cooled Kubota D1105 diesel engine imported from Japan. It features abundant power reserves, proven and stable performance, and fuel efficiency. With excellent cold-start capabilities, it operates reliably under extreme conditions—including intense cold, high heat, and heavy dust.

Anti-derailment tracks, stable travel

Roof And Chassis

Features specialized, thickened, anti-derailment industrial tracks with an optimized engagement structure; the tracks mesh tightly and distribute load evenly, effectively preventing misalignment, loosening, or detachment, while ensuring greater stability, superior terrain traversability, and a lower failure rate.

Hydraulic System

The hydraulic system has undergone a comprehensive upgrade; the entire lineup is equipped with high-end Taifeng piston pumps and load-sensing multi-way valves. This configuration ensures rapid hydraulic response, powerful and consistent power delivery, and seamless movement transitions. It delivers class-leading performance in heavy-duty excavation and breaking operations, while offering superior precision in fine control.

Comfortable Environment

Comfortable-Environment

The machine is equipped with high-end pilot hydraulic control joysticks, offering fully hydraulic multi-dimensional control and a smooth, refined feel that makes it incredibly easy for beginners to master.The operator's seat features multi-position fore-and-aft adjustment, effectively alleviating fatigue during prolonged operation while providing comprehensive safety protection for the operator.

About Parameters

JKW-30 Specifications
Operating weight	3500kg
Bucket capacity	0.06m³
Engine model	KUBOTA D1105
Rated net power	15.6kw/2400rpm
Maximum torque/speed	70.3n.m/(1600r/min)
Displacement	1.123L
Travel speed	3.1/2km/h
Swing speed	8r/min
Gradeability	≤30°
Ground pressure	32kPa
Bucket digging force	20KN
Arm digging force	12KN
Maximum tractive force	28KN
Fuel tank capacity	35L
Hydraulic tank capacity	32L
Engine oil capacity	5.1L
No.of cylinders	3
Rated flow of main pump	80L/min
Maximum digging height	4260mm
Maximum dumping height	3000mm
Maximum digging depth	2600mm
Maximum vertical wall digging depth	2150mm
Maximum digging radius	4620mm
Minimum swing radius	1950mm
Maximum Dozer Lifting Height	200mm
Maximum Dozer Cutting Depth	300mm

Customer Feedback

Compatible Devices

Attachments determine the workload you can handle and the machine's profitability..

Narrow Bucket

Standard Bucket

Toothless Bucket

Auger

Global Distributor Program

Zero barriers to entry: Whether you are a startup or an established distributor, no qualification review is required. We offer equal partnership opportunities to anyone passionate about market expansion.

Factory Tour

Excavator Configuration Options

SDJK excavators offer a wide range of models and support personalized customization. Options include enclosed cabins with air conditioning, custom body colors, specific engine brands, branding/logos, and various safety features, making it easy to configure specialized equipment tailored to diverse operating conditions and seasons.

Overseas Warehousing Support

SDJK offers one-stop procurement solutions, maintaining local warehouses in Italy, Hungary, and the United States stocked with frequently used models and spare parts to ensure rapid delivery and responsive after-sales service. Pre-purchase inspections and test runs are supported, providing peace of mind throughout the buying process.

After-sales support

We implement rigorous quality control; the unit comes with a one-year warranty, free parts replacement, and round-the-clock technical support. Each machine undergoes inspection by multiple quality control personnel prior to shipment and includes a maintenance manual. We hold CE, ISO,and TUV certifications, ensuring smooth customs clearance.

WHICH MODEL DO YOU DIG

The world needs a lot of dirt moved. That's why SDJK offers a huge lineup of mini excavators
to help you crank away wherever you need to crank. Find the one that's right for your operation.

JKW-28S Mini Excavator

Power : 14kw
Operating Weight : 2800kg
Max. digging depth : 2820mm

JKW-35S Mini Excavator

Power : 18.2kw
Operating Weight : 3500kg
Max. digging depth : 2880mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm

JKW-20 Mini Excavator

Power : 11.8kw
Operating Weight : 2000kg
Max. digging depth : 2290mm
