Mini Excavators

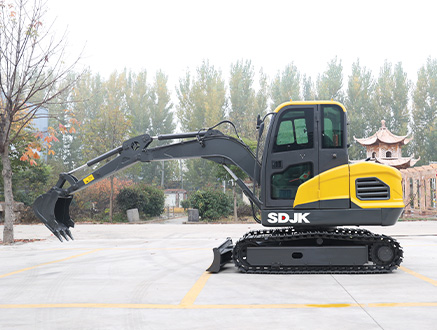

JKW-40 MINI EXCAVATOR

  • Operating Weight
    3200kg
  • Max. digging depth
    2345mm
  • Power
    45.6HP
  • Machine Video

  • Request a quote
JKW-40 MINI EXCAVATOR

version and dispaly

Specifications for JKW-40 MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

  • Engine-compartment Engine-compartment
  • Cab-details Cab-details
  • Hydraulic-cylinder Hydraulic-cylinder

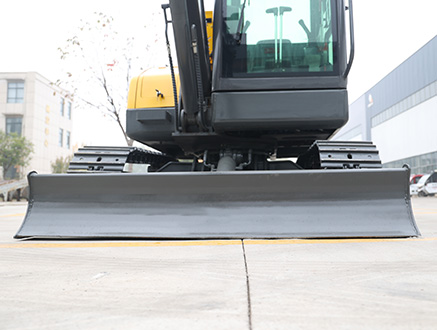

  • Bulldozer-blade Bulldozer-blade
  • Steel-track Steel-track

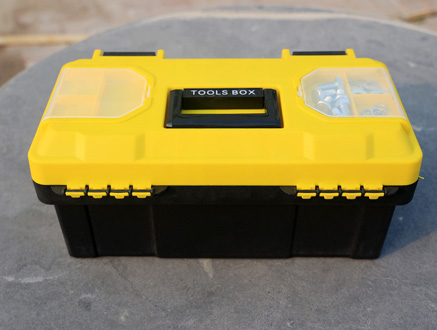

  • Free-toolbox Free-toolbox
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE
    JKW-40 Specifications
    Machine working quality 3200kg
    Standard Bucket Capacity 0.16m3
    wheelbase 1400mm
    wheelbase 1800mm
    Machine width 1560mm
    stick length 1240mm
    boom length 2330mm
    engine LAIDONG490
    the power 34kw/2400rpm
    net mass 215Kg
    number of cylinders 4
    The maximum displacement of the pump 36cm3/r
    Main relief valve set pressure 20Mpa
    Swing speed 8rpm
    The minimum turning radius of the tail 1820mm
    travel speed crawler 2.25-4.5km/h
    Maximum walking speed Wheel type 7-22Km/H
    Gradeability 30°
    traction 24.5kN
    digging depth 2345mm
    digging height 4450mm
    Maximum digging distance 4730mm
    unloading height 3050mm
    Bulldozer blade descending depth 268mm
    fuel tank volume 60L
    Hydraulic oil tank volume 55L
    Transport state size (mm) 4600x1600x2720
