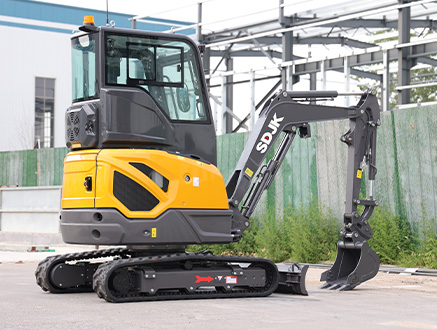

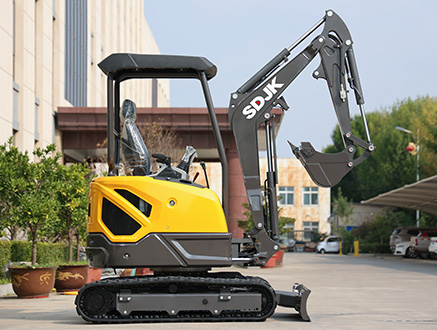

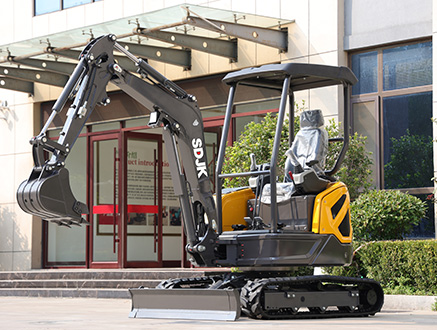

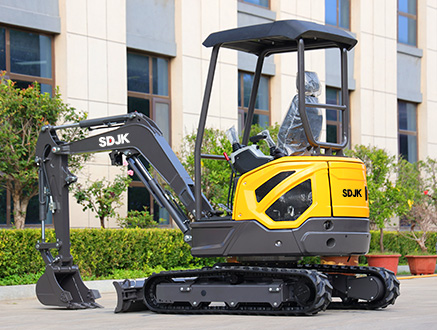

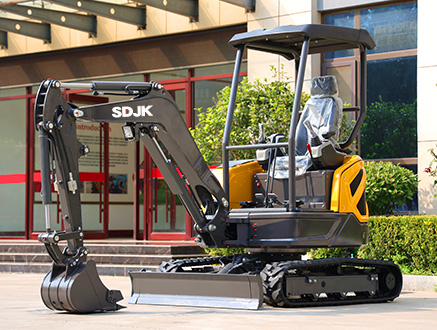

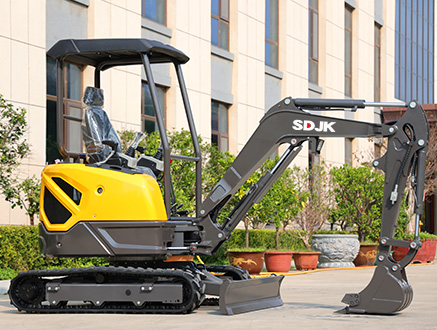

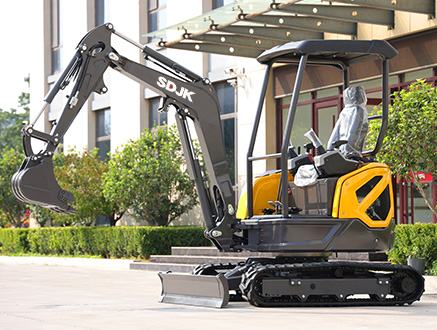

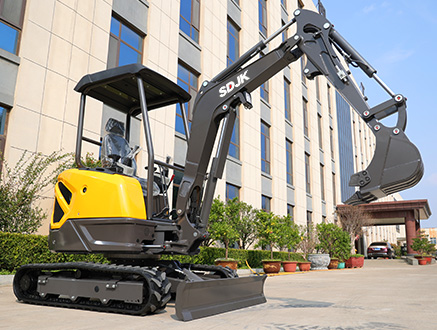

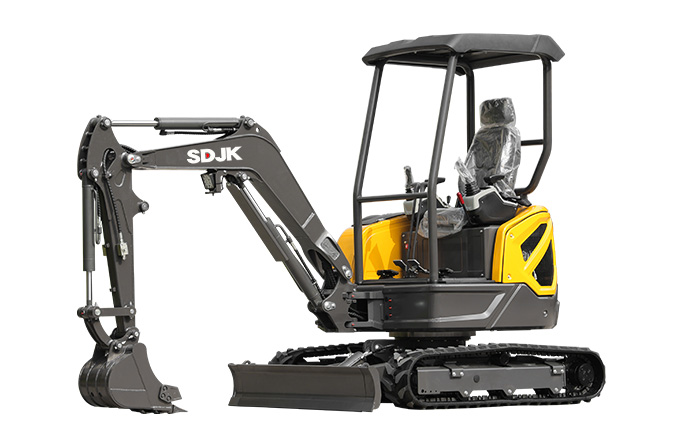

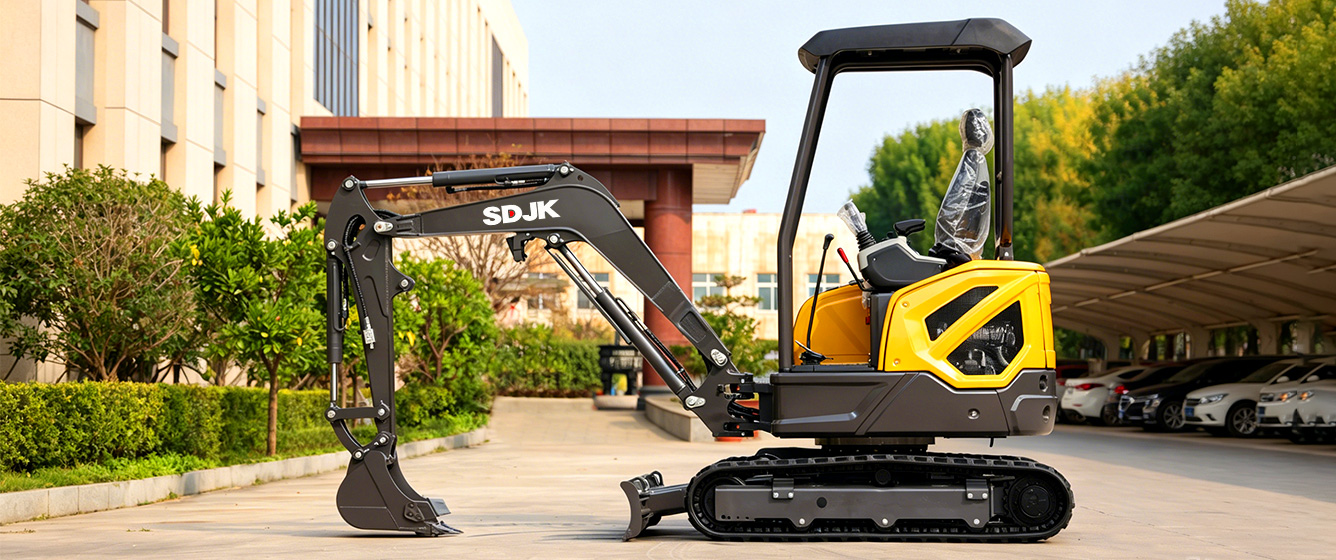

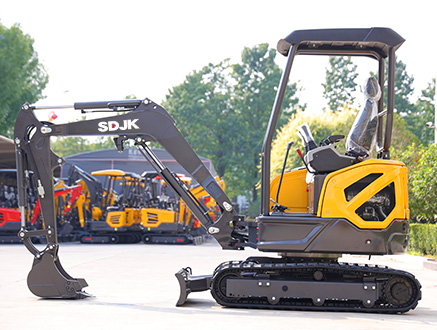

JKW-30 MINI EXCAVATOR
-
- Operating Weight
- 2600kg
-
- Max. digging depth
- 2260mm
-
- Power
- 20.9HP
-
-
Specifications for JKW-30 MINI EXCAVATOR
About excavator

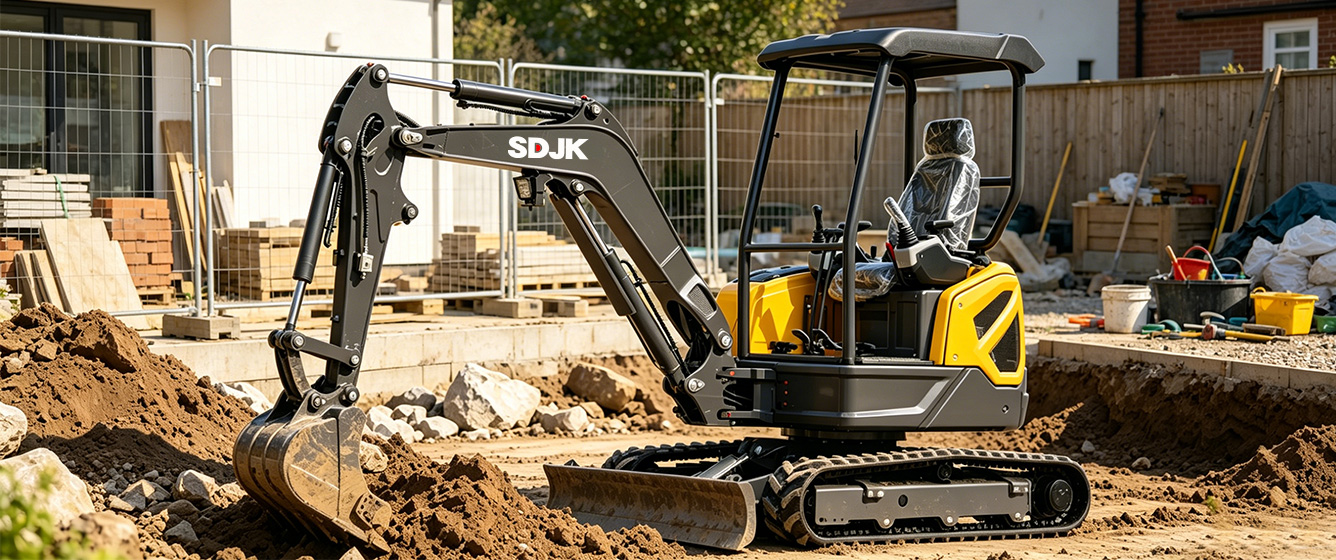

SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.
Details of excavator
The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less
damage
to the surface.
In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high
performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.
-
Engine-compartment
-

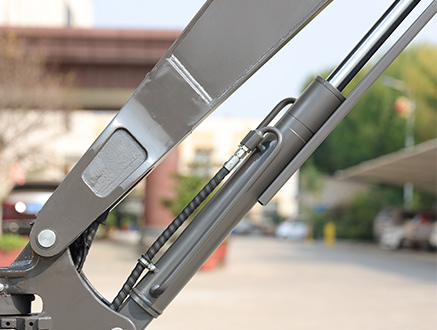

Hydraulic-cylinder
-

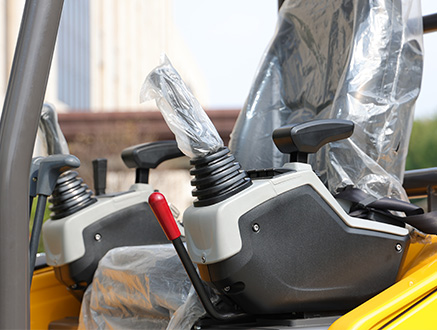

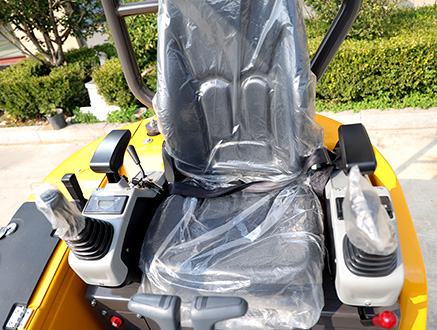

Cab-details
-
Built-in-fan
-

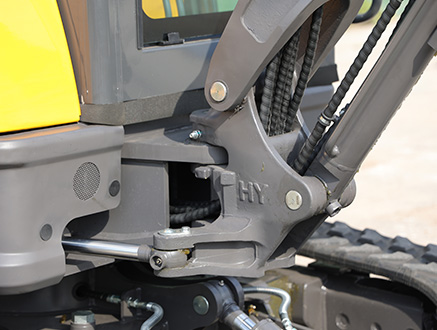

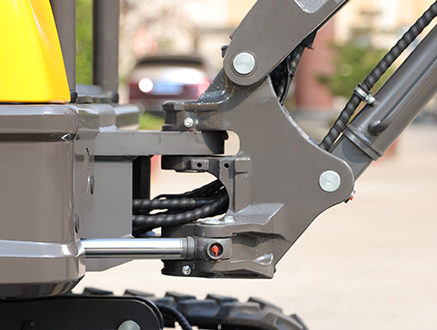

Boom-side-sway
-

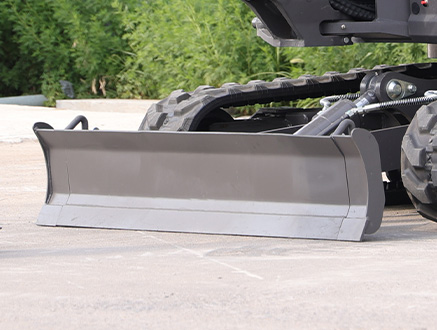

Bulldozer-blade
JKW-30 Specifications | |
Machine Weight | 2600Kg |

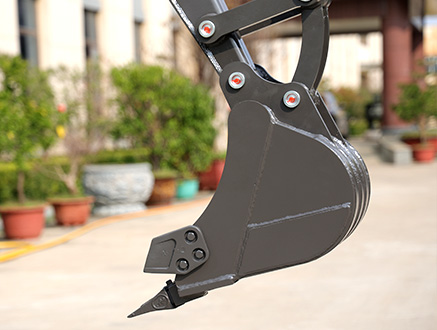

Bucket Capacity | 0.06m³ |
Model | D1105 |
No.of cylinders | 3 |
(GB/T17692)Rated net power | 15.6/2400kw/rpm |
Maximum torque/speed | 70.3/(1600r/min)N.m |
Displacement | 1.123L |
Travel speed | 3.1/2km/h |
Gradeability | ≤30° |
Ground pressure | 32kPa |
Bucket digging force | 20kN |
Arm digging force | 12kN |
Maximum tractive force | 28kN |
Fuel tank capacity | 35L |
Hydraulic tank capacity | 32L |
Length of arm | 1100mm |
Bucket Capacity | 0.06m³ |
Maximum Digging Height | 3950mm |
Maximum Dumping Height | 2800mm |
Maximum Digging Depth | 2260mm |
Maximum Vertical Wall Digging Depth | 1820mm |
Maximum Digging Radius | 4230mm |
Maximum Dozer Lifting Height | 200mm |
Maximum Dozer Cutting Depth | 300mm |
