Mini Excavators

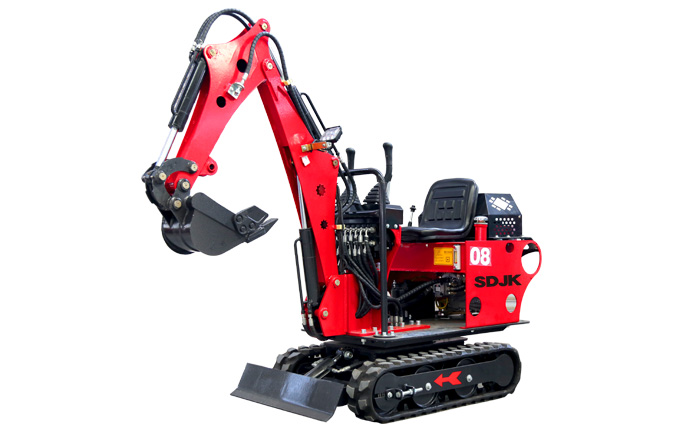

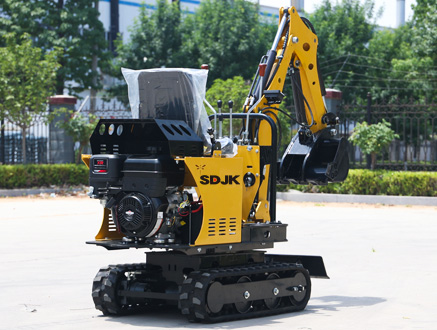

JKW-08 MINI EXCAVATOR

  • Operating Weight
    800kg
  • Max. digging depth
    1200mm
  • Power
    5.6HP
  • Machine Video

  • Request a quote

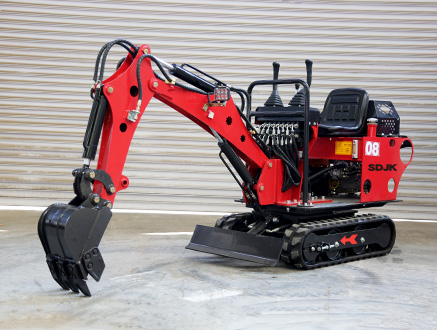

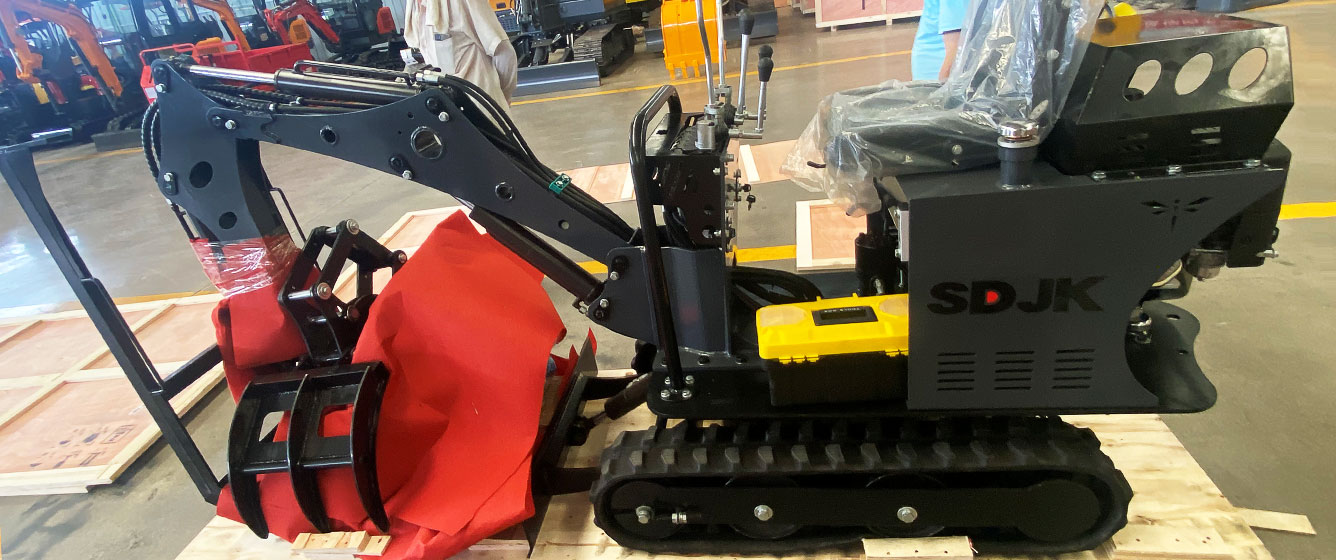

JKW-08 MINI EXCAVATOR

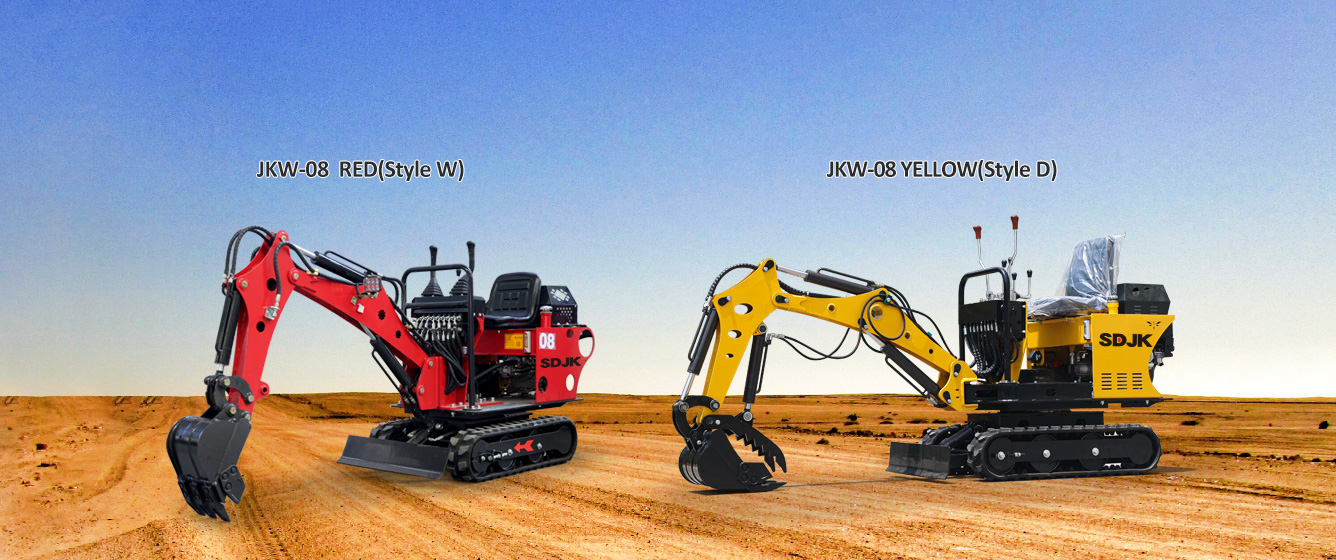

version and dispaly

Specifications for JKW-08 MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

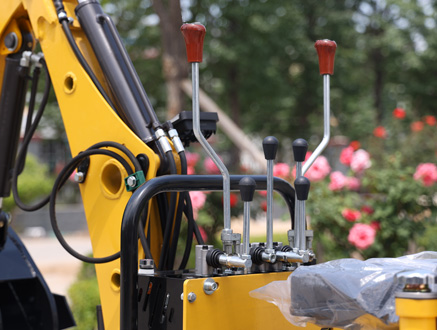

  • Console Console

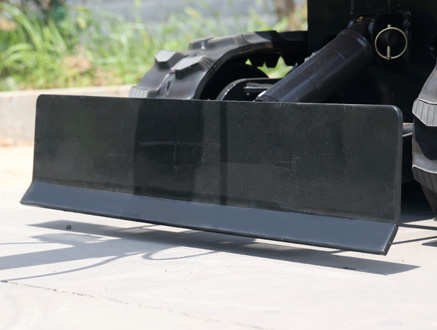

  • Bulldozer-blade Bulldozer-blade

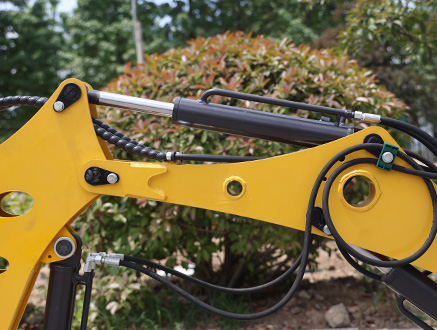

  • Hydraulic-cylinder Hydraulic-cylinder

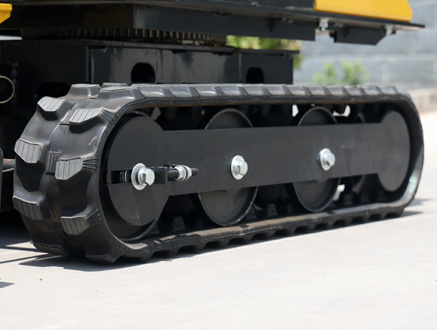

  • Rubber-track Rubber-track

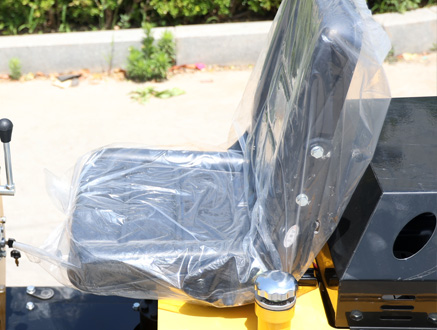

  • Comfort-seats Comfort-seats

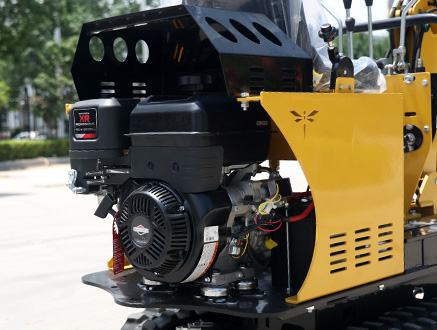

  • Brand-engine Brand-engine
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-08 Specifications

    Chassis Width

    720mm

    Track Length

    1150mm

    Chassis Ground Clearance

    80mm

    Gradeability

    35°

    Track Width

    150mm

    Volume Of Fuel Tank

    15L

    Transport Length

    2500mm

    Excavator Height

    1350mm

    Overall Dimension

    2500*720*1350mm

    Engine Model

    KOOP 192F/BRIGGS & STRATTON

    Engine Power

    7.6kw / 2400rpm;10kw/420cc

    Turning Radius

    1400mm

    Max. Digging Height

    2470mm

    Max. Dumping Height

    1700mm

    Max. Digging Depth

    1200mm

    Max. Digging Radius

    2500mm

    Max. Vertical Digging Depth

    1120mm

    Bucket Excavating Force

    10KN

    Operating Weight

    800kg
