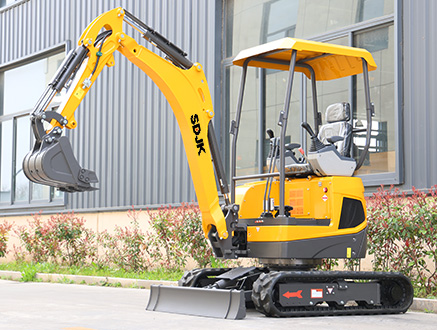

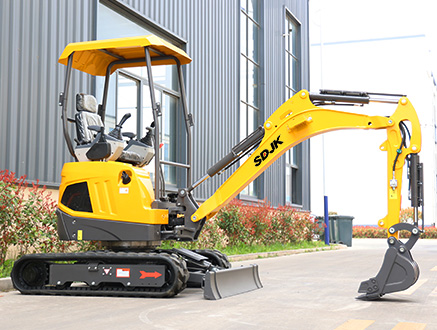

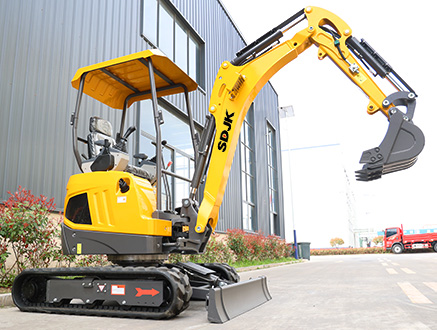

JKW--20 MINI EXCAVATOR

  • Operating Weight
    2000kg
  • Max. digging depth
    2255mm
  • Power
    15.8HP
  • Machine Video

  • Request a quote

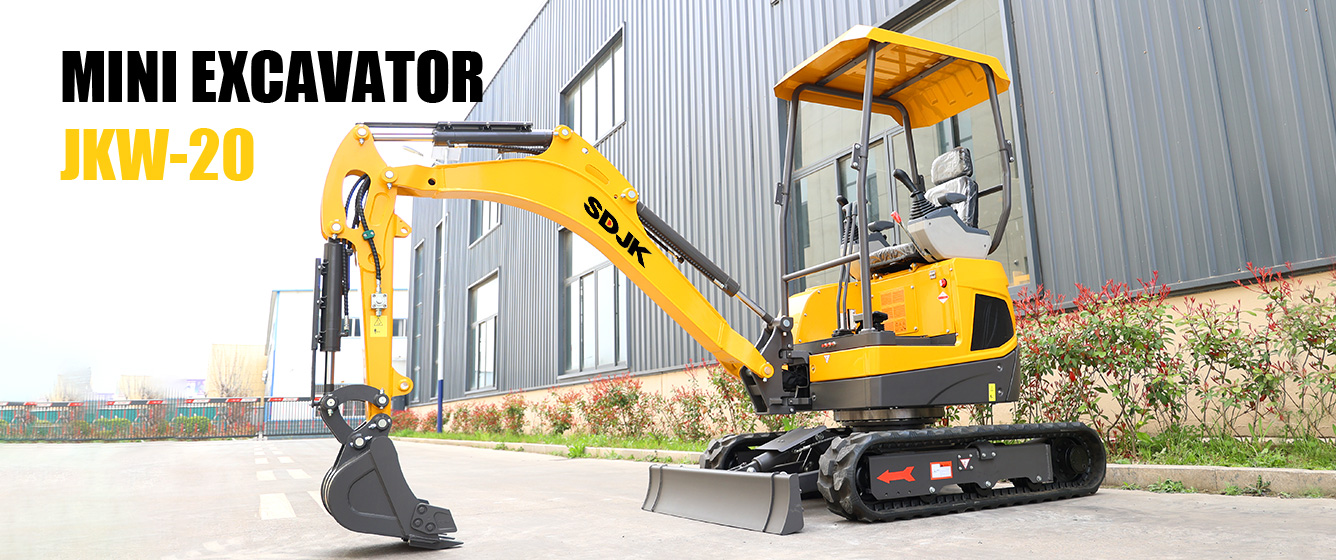

JKW--20 MINI EXCAVATOR

version and dispaly

Specifications for JKW--20 MINI EXCAVATOR

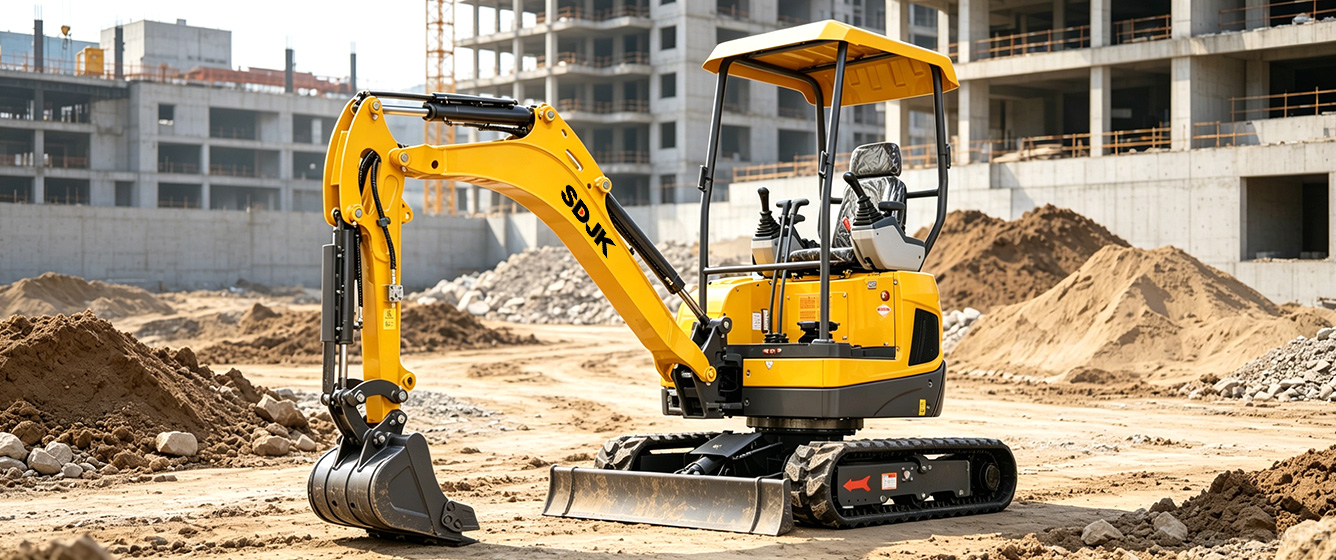

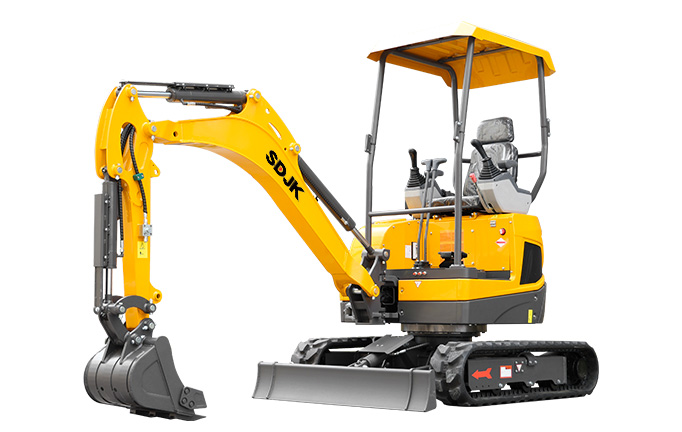

JKW--20 MINI EXCAVATOR


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.

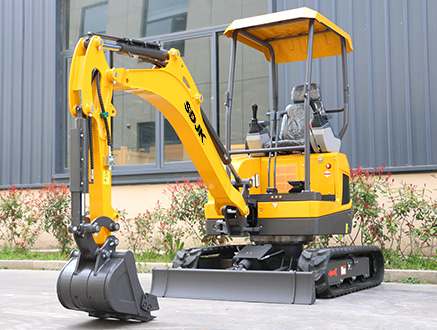

JKW--20 MINI EXCAVATOR


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

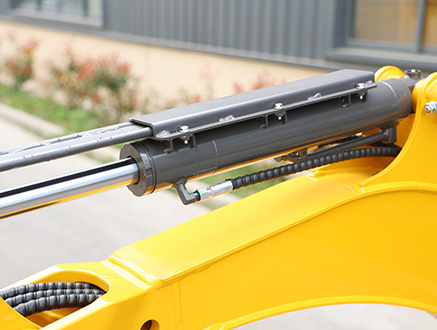

  • Hydraulic-cylinder Hydraulic-cylinder

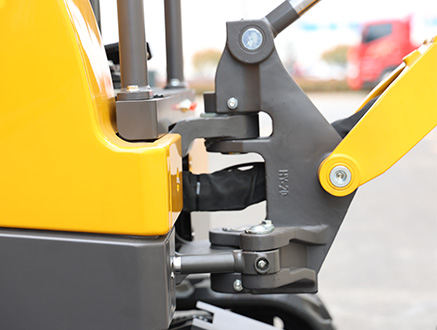

  • Boom-side-sway Boom-side-sway
  • Comfort-seats Comfort-seats

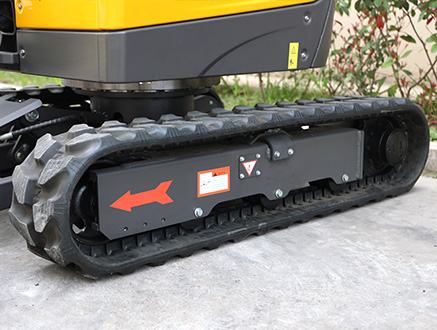

  • Rubber-track Rubber-track

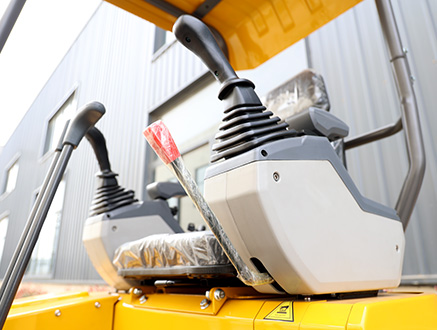

  • Control-system Control-system
  • Free-toolbox Free-toolbox
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE
    ABOUT PARAMETERS

    JKW-20 Specifications

    Overall Dimension

    3575*1300*2288mm

    Operating Weight

    2000kg

    Bucket Capacity

    0.04m³

    Width of Platform

    1015mm

    Length of Crawler

    1556mm

    Minimum Tail Swing Radius

    650mm

    Width of Crawler

    230mm

    Engine Model

    Kubota D902

    Rated Net Power

    15.8HP

    Maximum Torque

    51.3N.m

    Travel Speed

    4/2 km/h

    Swing Speed

    8r/min

    Gradeability

    ≤30°

    Ground Pressure

    30KPa

    Fuel Tank Capacity

    18L

    Hydraulic Tank Capacity

    20L

    Engine Oil Capacity

    3.7L

    Maximum digging height

    3520mm

    Maximum dumping height

    2480mm

    Maximum digging depth

    2255mm

    Maximum vertical wall digging depth

    1715mm

    Maximum digging radius

    3890mm

    Minimum swing radius

    1495mm
